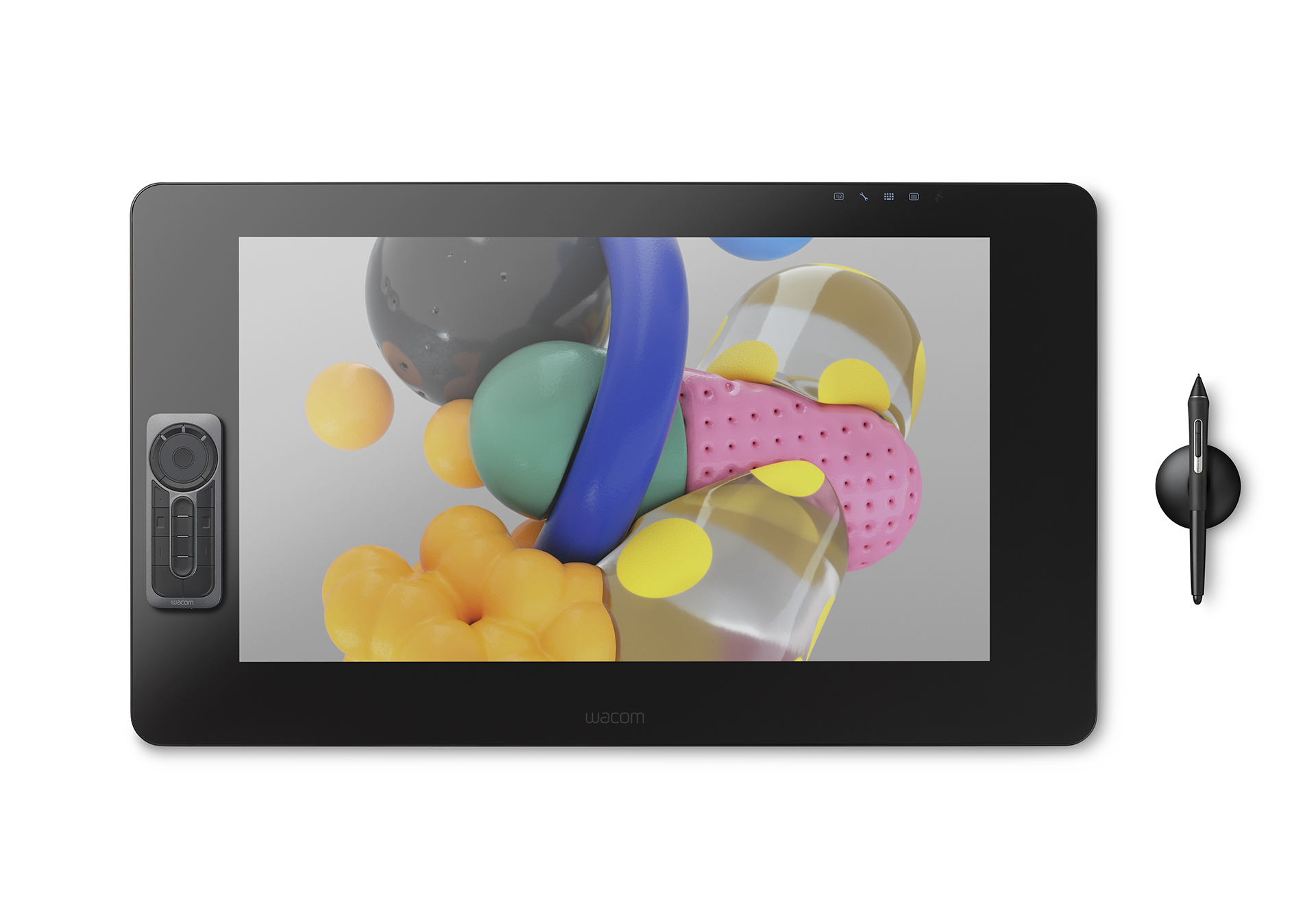

Wacom Cintiq Pro 24 (No Touch – Model 2018)

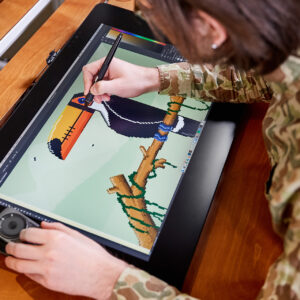

Create directly on screen with our most natural pen experience

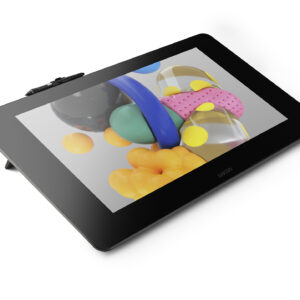

The Wacom Cintiq Pro 24 is an advanced creative pen display, designed to enhance every creative breakthrough.

Features

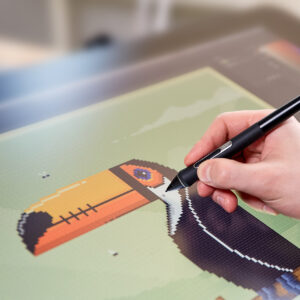

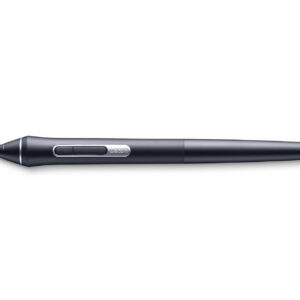

Includes a Wacom Pro Pen 2 for superior accuracy, tilt detection and 8,192 levels of pressure sensitivity.

An on-screen keypad, radial menus and the ExpressKey™ Remote offer a more intuitive experience.

Virtually no parallax and jitter while using premium 4K screens, complete with world class Adobe RGB 98% color performance.

Etched glass screens reduce glare and reflections while providing a natural, pen on paper feel as you draw.

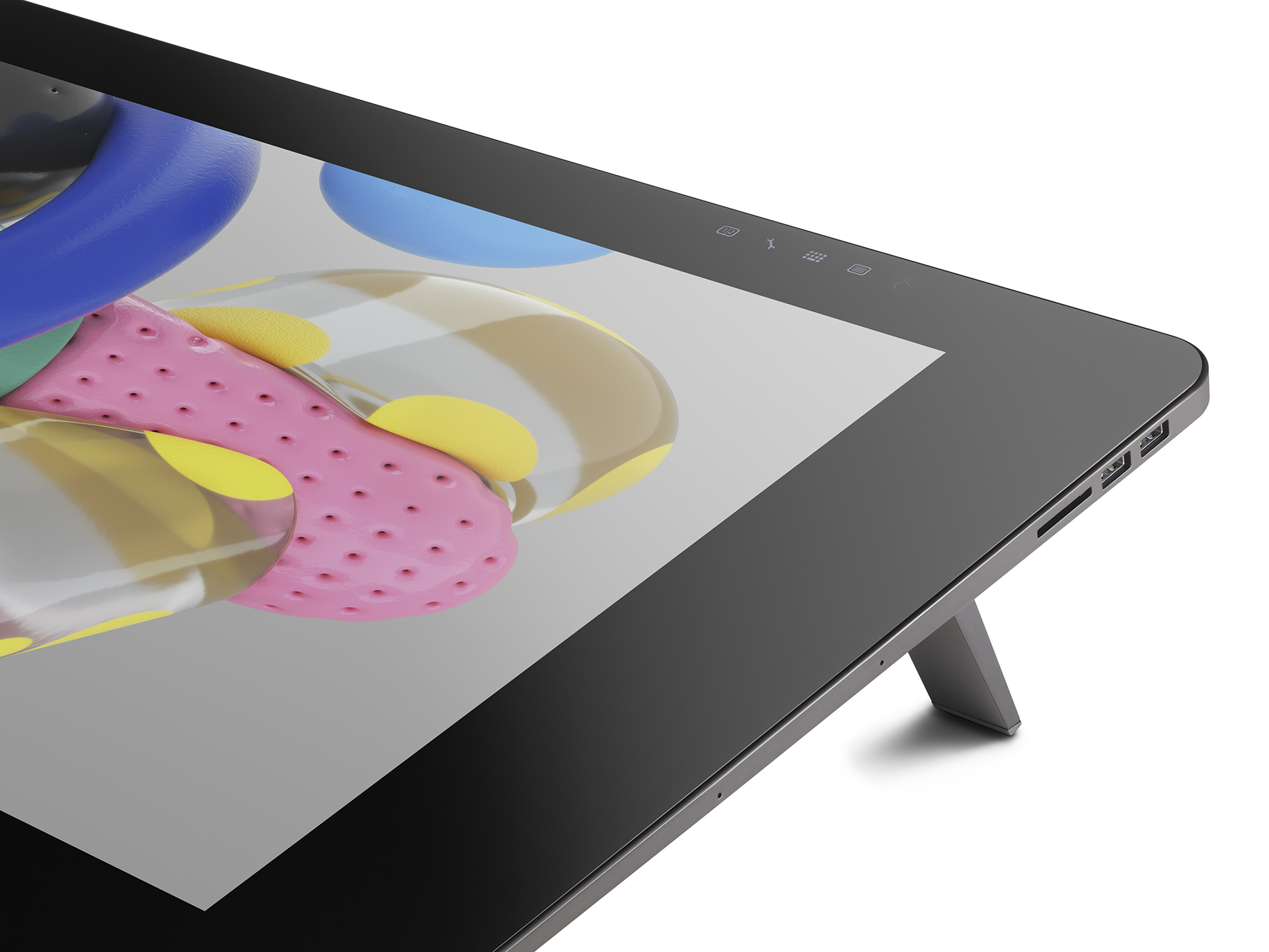

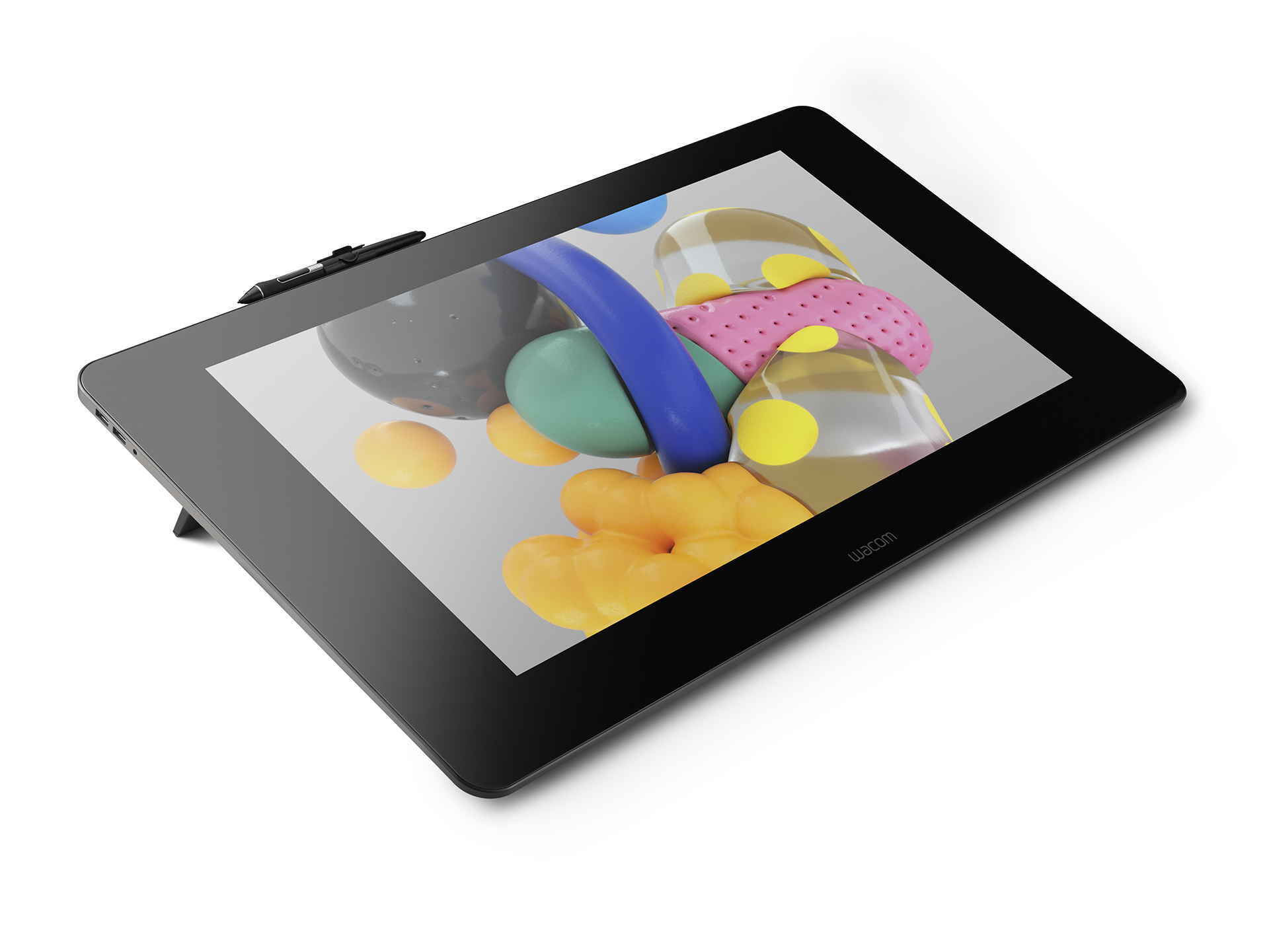

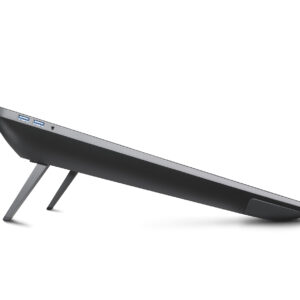

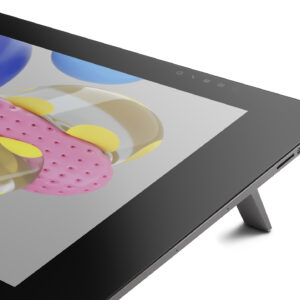

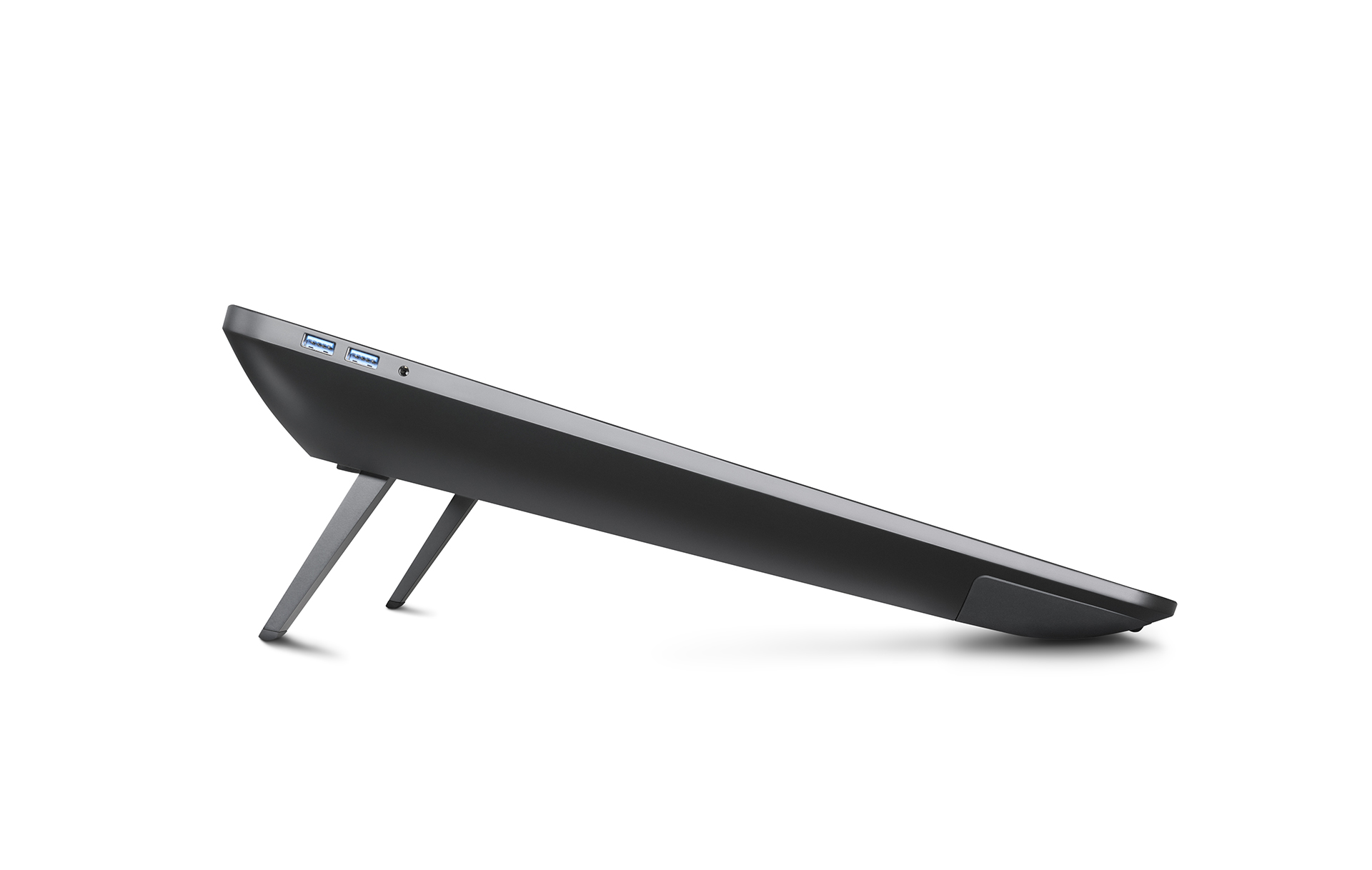

Built-in legs raise your Wacom Cintiq Pro from 5° to 20°.

The optional Wacom Ergo Stand (available March 2018) lets you raise, tilt and rotate your Cintiq Pro to find the most natural position for you.

Add the optional creative PC module Cintiq Pro Engine to turn your Cintiq Pro into a powerful creative pen computer.

Compatible with Mac and Windows.

• Product TypeCreative Pen Display 24
• Model numberDTK2420K0 creative pen display
• Size677 x 394 x 47 mm (26.65 x 15.5 x 1.9 inch)
• Weight7 kg (15.43 lbs) without optional stand
• Screen Size (Measured Diagonally)59.94 cm / 23.59 in
• TechnologyIPS UHD high brightness panel
• Displayable Colors (maximum)1.07 billion colors (10 bits color)
• Aspect Ratio16:9
• Viewing Angle176° (88°/88°) H, (88°/88°) V
• Contrast Ratio1000:1
• Brightness350 cd/m2
• Response Rate14 ms
• Active Area522 X 294 mm (20.55 X 11.57 inch)
• Color Gamut99% Adobe RGB
• Industry Standard Pre-sets6500° K whitepoint default
• Graphics InputUSB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI 2.0 port (required for 3840 x 2160 resolution).
• Multi-TouchYes – on touch model only (DTH-2420)

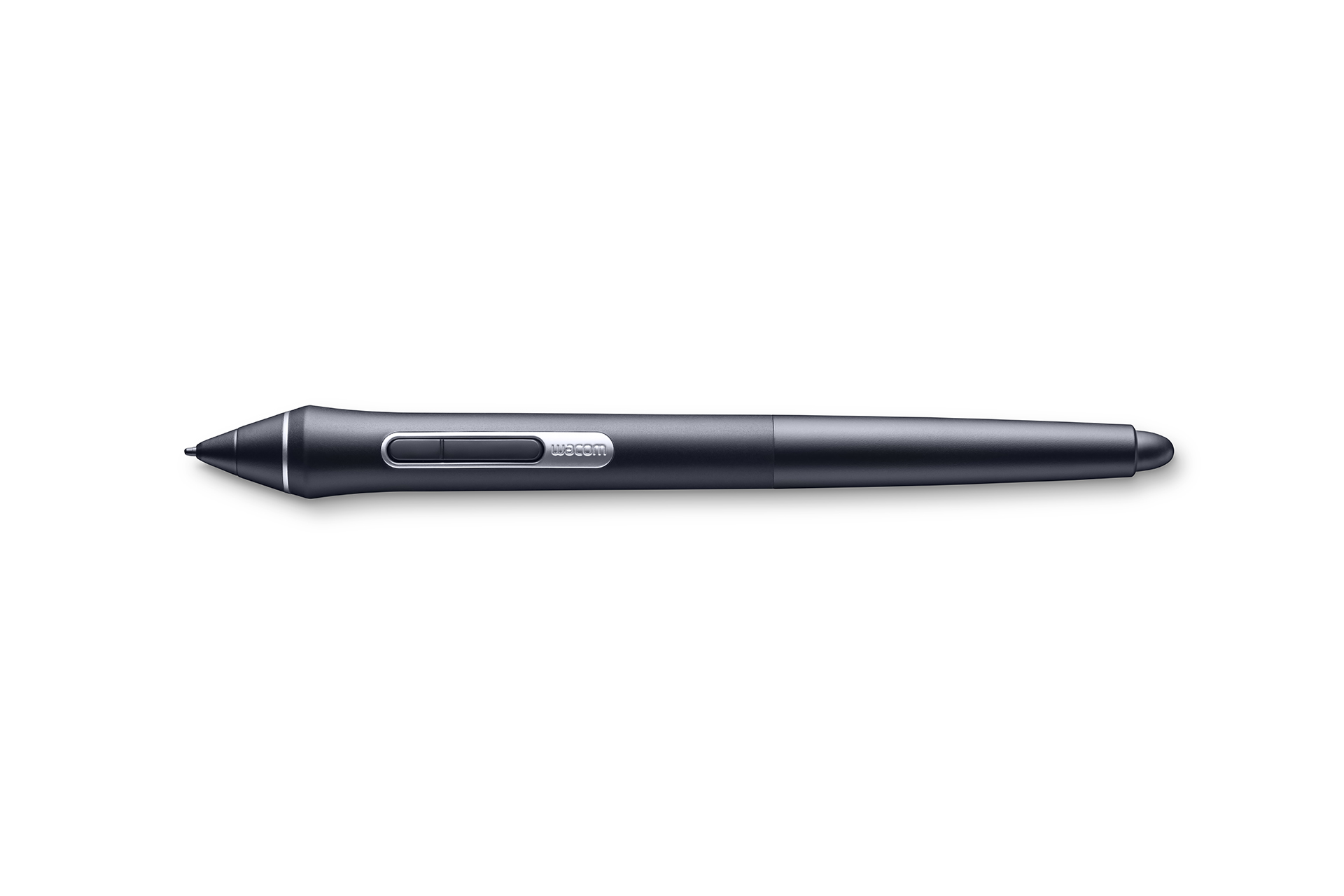

• PenWacom Pro Pen 2
• Pressure Levels8192, both pen tip and eraser
• Tilt Range40 degrees
• Tilt Recognition±60 levels
• TypePressure-sensitive, cordless, battery-free
• SwitchesTip switch, 2 side switches, eraser
• Nibs10 (6 standard, 4 felt) in pen stand
• Pen Box/ HolderYes – Pen Holder
• Pen StandYes
• GripLatex-free silicone rubber
• TechnologyPatented electromagnetic resonance method
• Resolution5080 lpi
• ExpressKeys™17 customizable, application-specific on included ExpressKey™ Remote
• Touch RingYes – on included ExpressKey Remote
• Touch StripsNo
• Rocker Ring And Home ButtonYes – on included ExpressKey Remote
• Radial MenuYes
• Precision ModeYes
• Display ToggleYes
• Dedicated Pan, Scroll, Zoom, Brush SizeYes
• ExpressKey™ Remote Dimensions135 x 52 x 10 mm (5.3 x 2.0 x 0.4 inch)
• ExpressKey™ Remote Continuous OperationUp to 160 hours, if a key is pressed every 30 seconds
• ExpressKey™ Remote Charge TimeUp to 2 hours

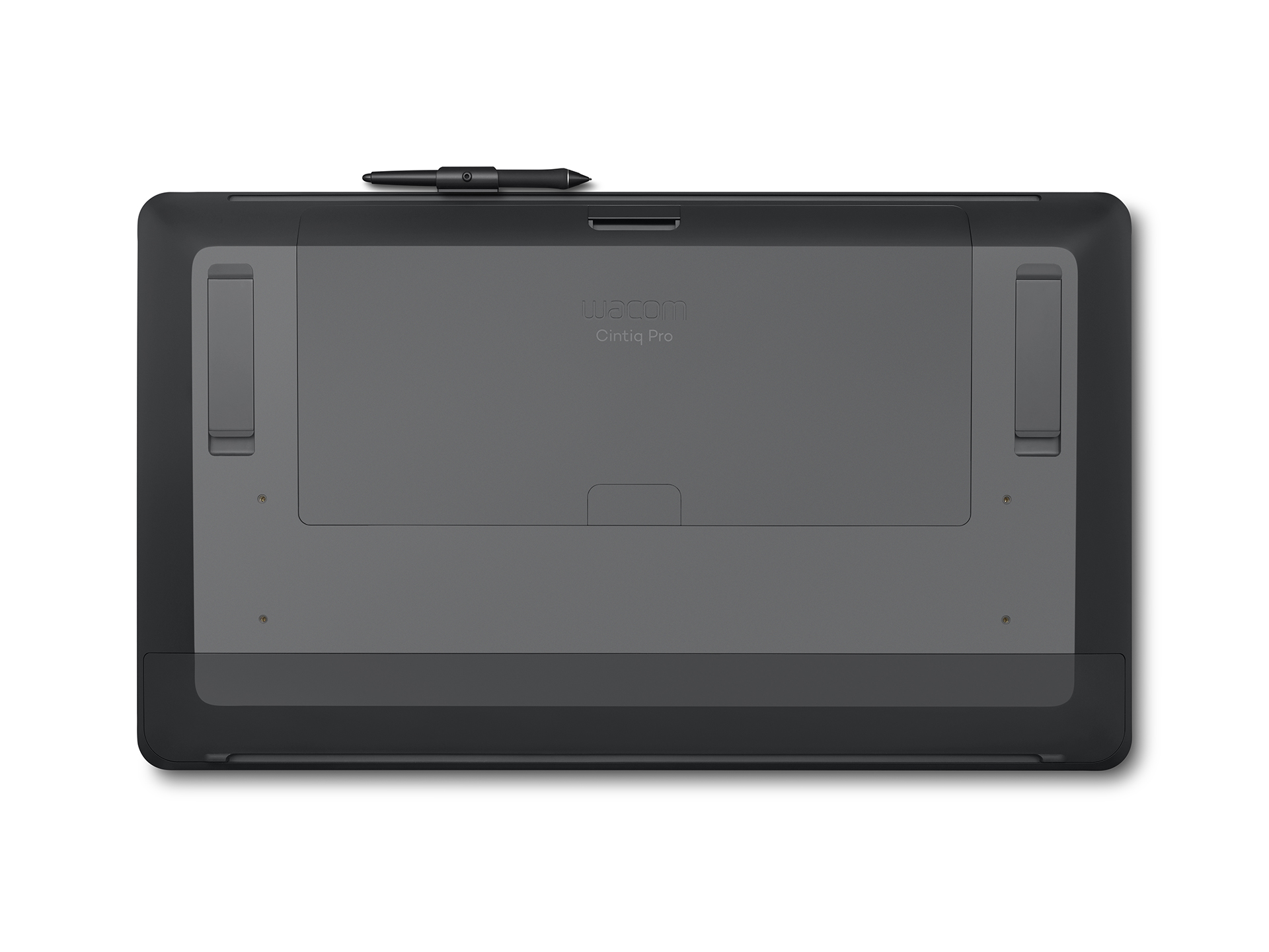

• Stand AdjustabilityIntegrated pop-out legs for 20° angle (5° angle without legs)
• Stand OrientationRight or left-handed use
• Cables IncludedUSB to USB cable (3m), DisplayPort to DisplayPort cable (3m), HDMI 2.0 to HDMI2.0 cable (3m),USB-C to USB-C cable (1.5m), DisplayPort to Mini DisplayPort adapter, microUSB to USB cable (30 cm; for ExpressKey Remote)
• PC and Mac ConnectionUSB-C supporting DisplayPort Alternate Mode (DPAM), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port
• Ports included4 x USB3 ports*
  1 x USB C port
  1 x HDMI2.0 port
  1 x DP port
  2 USB-A Ports (one for ExpressKey Remote dongle)

  *When connected to host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K video bandwidth over USB-C.

• AudioAudio headset jack, built-in microphone
• Power Supply Input100 to 240 VAC, 50/60Hz
• Power Supply Output20 VDC, 2.25 A (max)
• Power ConsumptionPower ON mode (Max.): 100 W
  Power sleep mode: 2.0 W or lower
  Power OFF mode: 0.5 W or lower
• BatteryRechargable Li-ion battery on included ExpressKey Remote
• SecurityKensington® Lock Port (lock purchased separately)
• System RequirementsPC: Windows® 7 or later (latest service pack/build), Mac: OS X 10.11 or later (latest update),
  USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download.
• What’s IncludedWacom Cintiq Pro 24 or Wacom Cintiq Pro 24 touch
  Wacom Pro Pen 2 with 4-color pen ring set
  ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable)

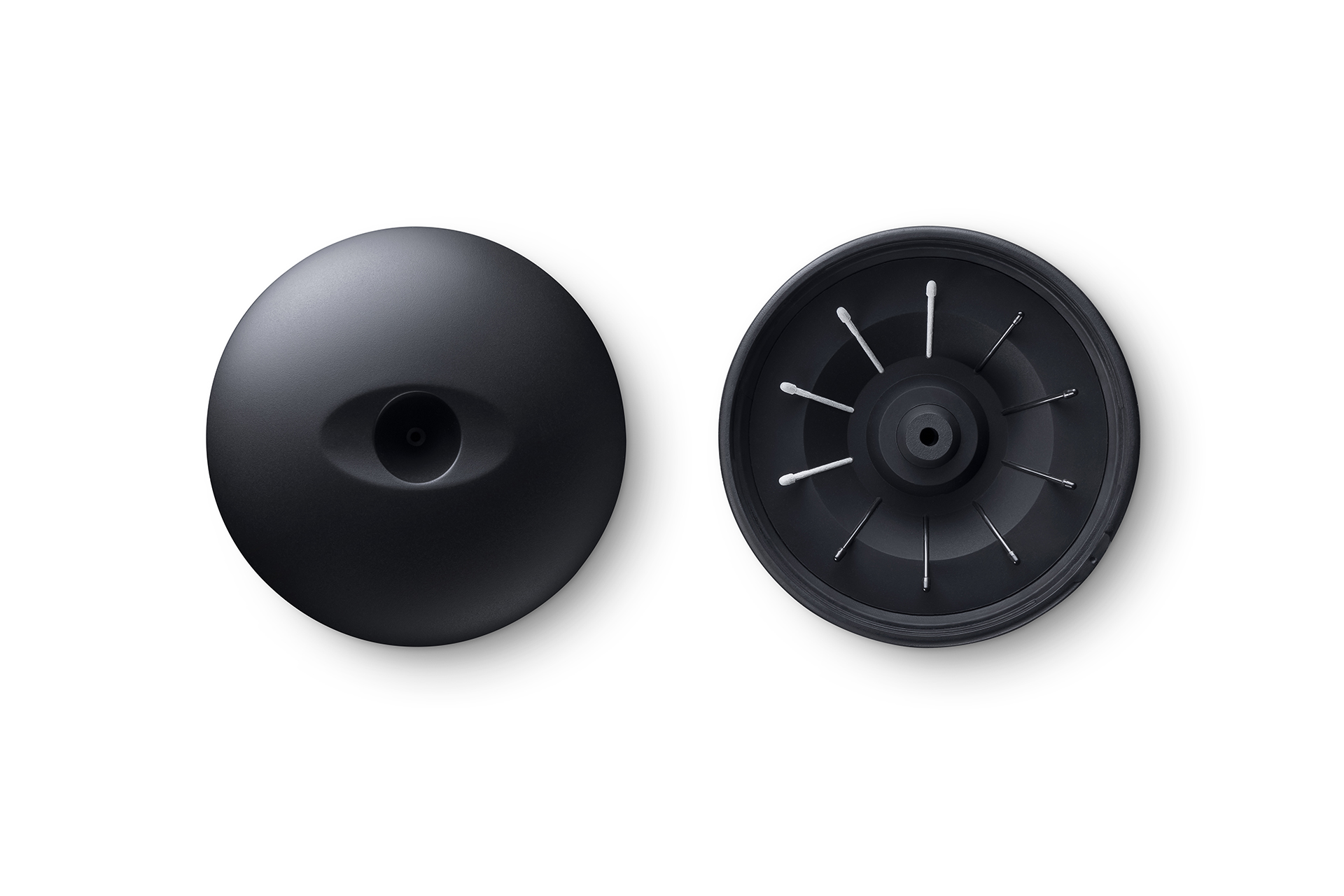

  Pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool
  Pen holder,
  180W AC adaptor and 1.8m power cable
  1.5m USB-C to USB-C cable,
  3m DisplayPort to DisplayPort cable
  3m HDMI2.0 to HDMI2.0 cable
  3m standard USB-A to USB-A cable
  DisplayPort to Mini DisplayPort adapter
  Quick Start Guide
  Regulation sheet
  Cleaning cloth
• CertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
• Additional AccessoriesWacom Ergo Stand
  Wacom Cintiq Pro Engine
  Wacom Color Manager
  Wacom Pro Pen 3D
  Wacom Keyboard, Replacement Wacom nibs (standard and flex) for Wacom Pro Pen 2
  Additional previous generation pens (Classic, Airbrush, Art, Pro Pen)
  Replacement ExpressKey Remote
  Replacement Wacom Pro Pen 2
• Limited Warranty2 years in USA, Canada, Latin America and China
