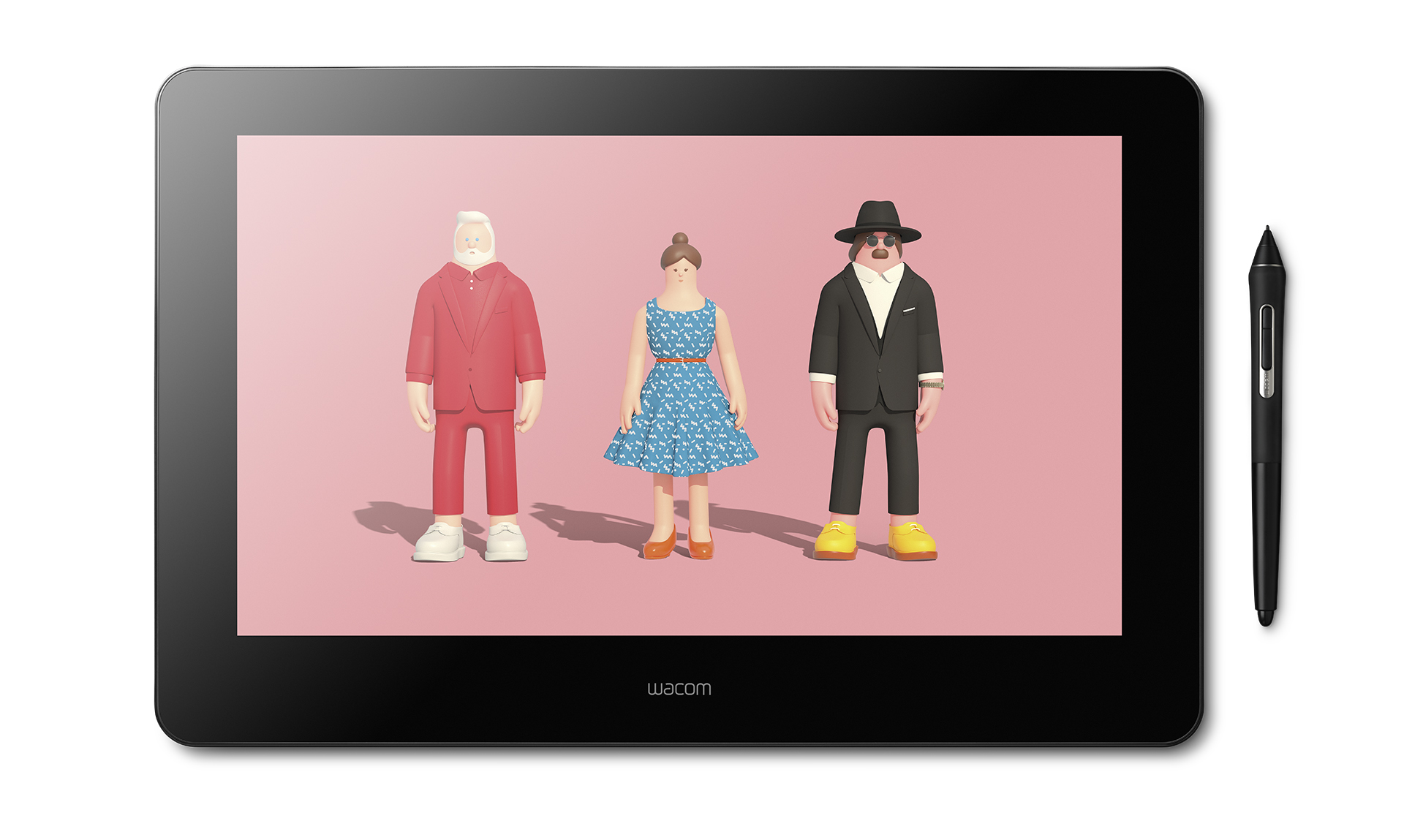

Wacom Cintiq Pro 16 (2nd Gen – Model 2021)

Accuracy redefined in a compact design

When creativity strikes, you want to bring your vision to life effortlessly. That’s why we’ve refined Wacom Cintiq Pro 16 to make it even more comfortable and natural to work on. With enhanced ergonomics and an intuitive pen-on-screen experience, you can fully immerse yourself in your craft.

Features

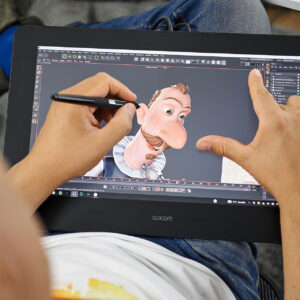

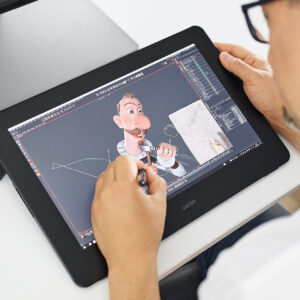

Our best on-screen pen and multi-touch experience – the Wacom Cintiq Pro 16 (2021)

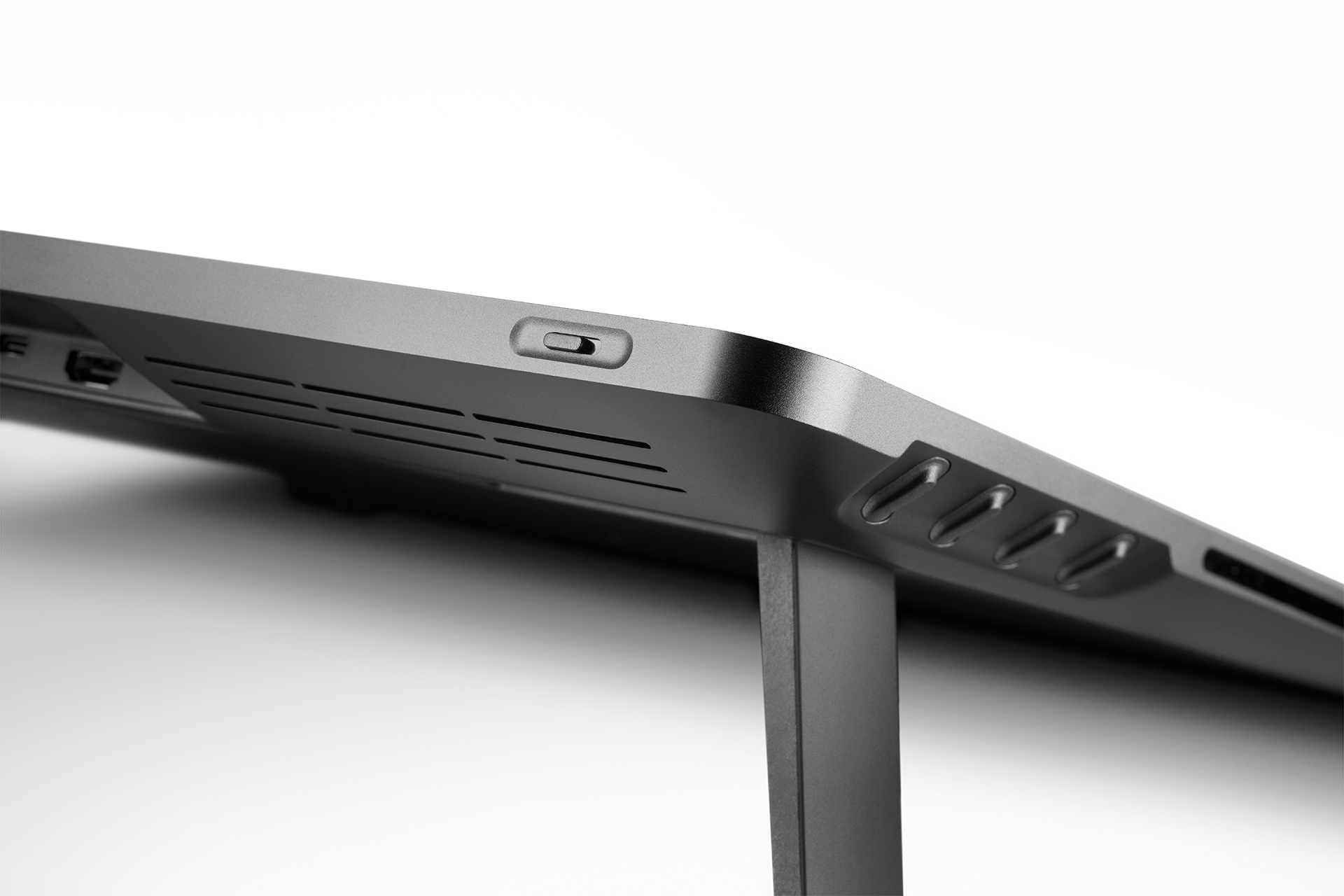

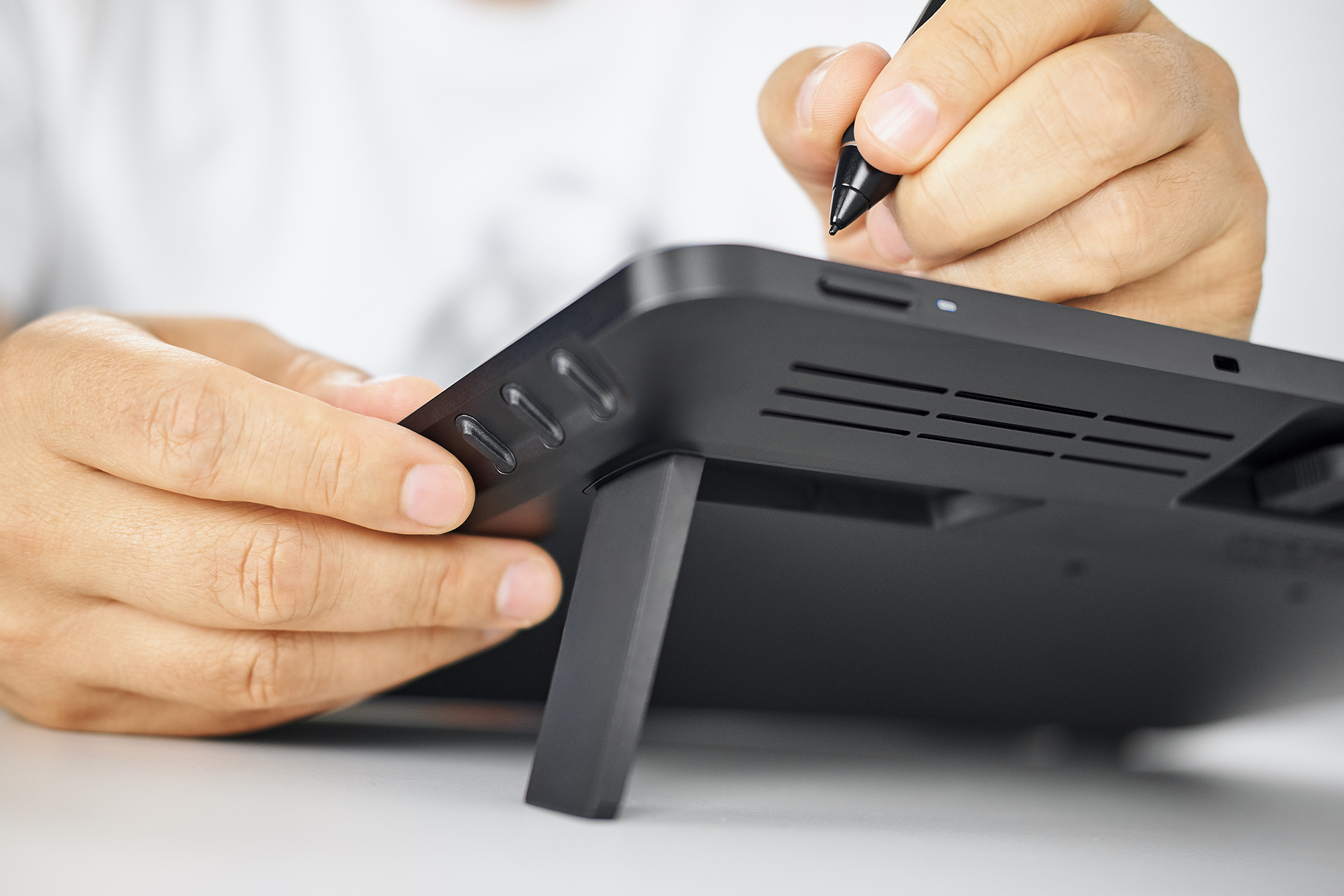

Built-in ExpressKeys™ at the rear edge, On/Off-switch for multi-touch gestures for maximum control

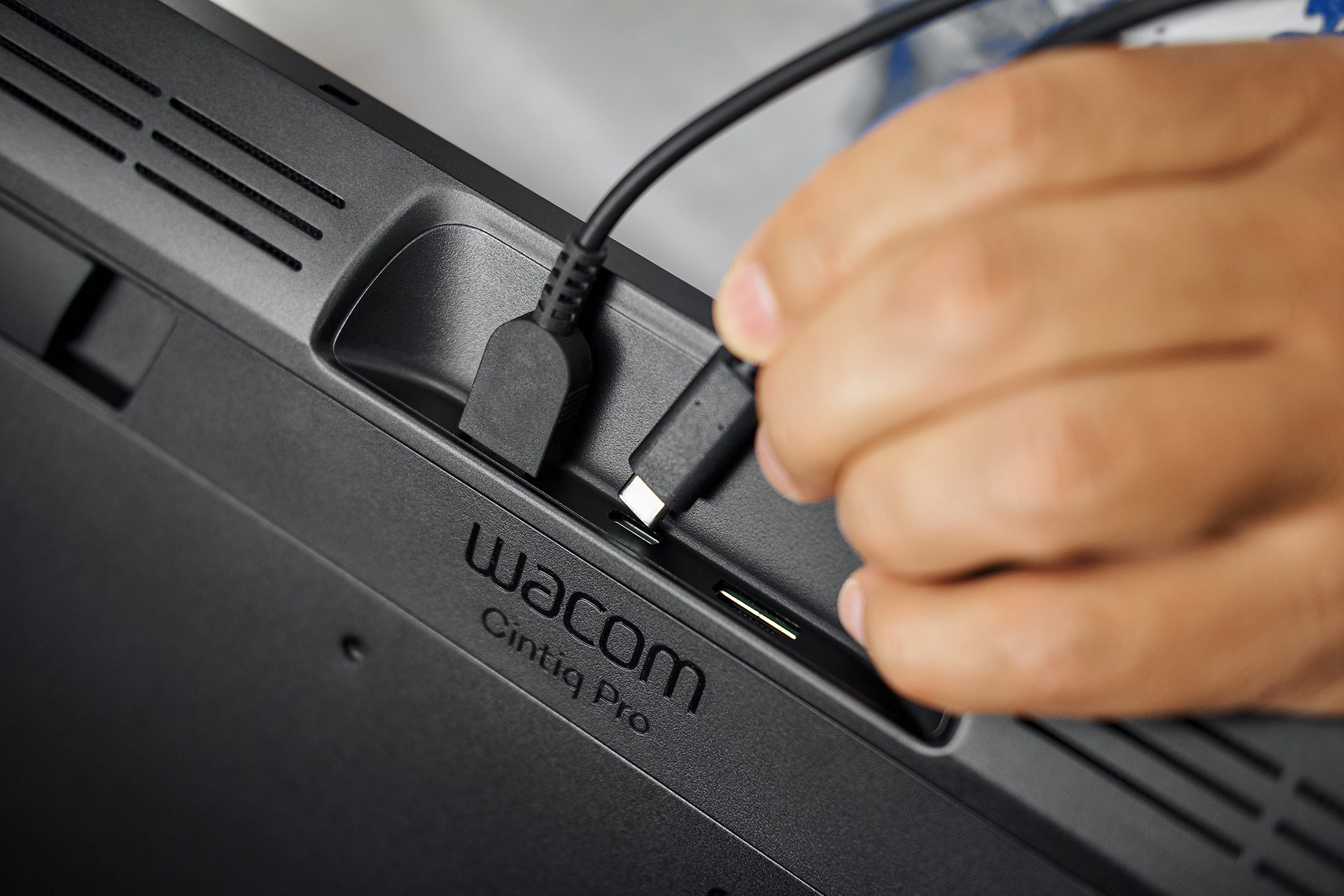

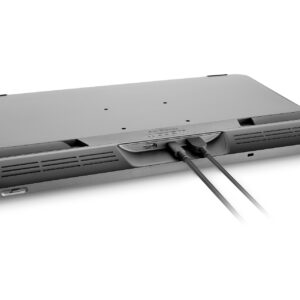

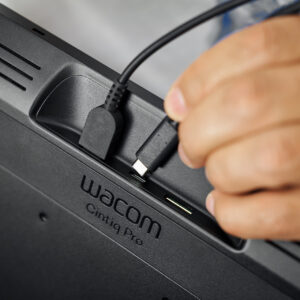

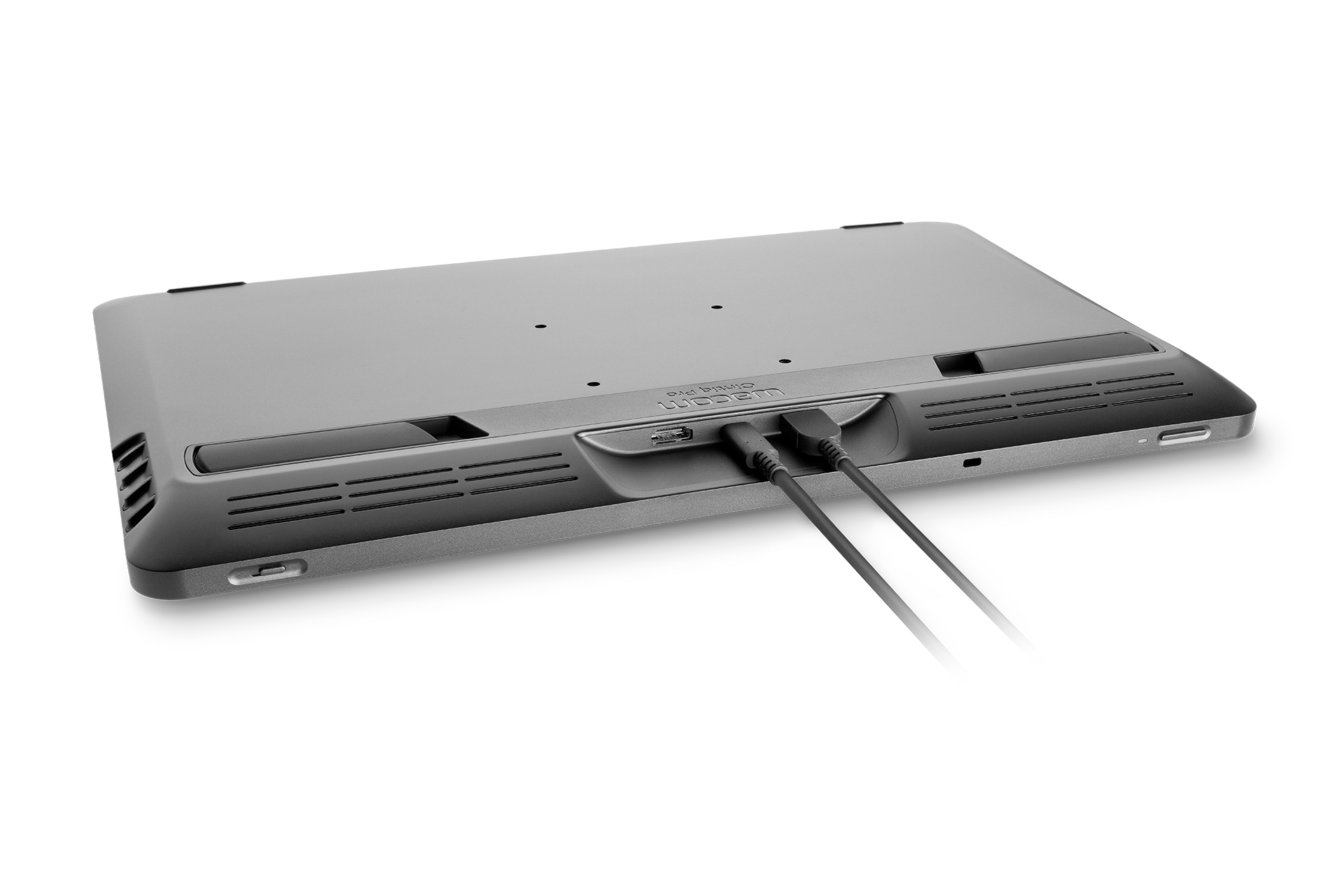

Easy connectivity and VESA mount for maximum comfort

Optional Wacom Adjustable Stand* for your Cintiq Pro 16 to find the most natural position for you

Works with any other VESA compatible third party arm

Includes creative pen with tilt-recognition and 8,192 levels of pressure sensitivity

Virtually no jitter when using 4K screens with Adobe RGB 98% color performance

Etched glass screen reduces glare while providing a natural, pen on paper feel

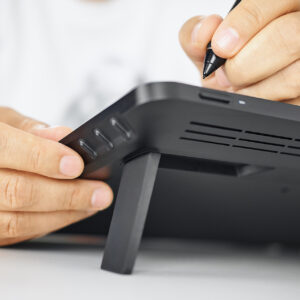

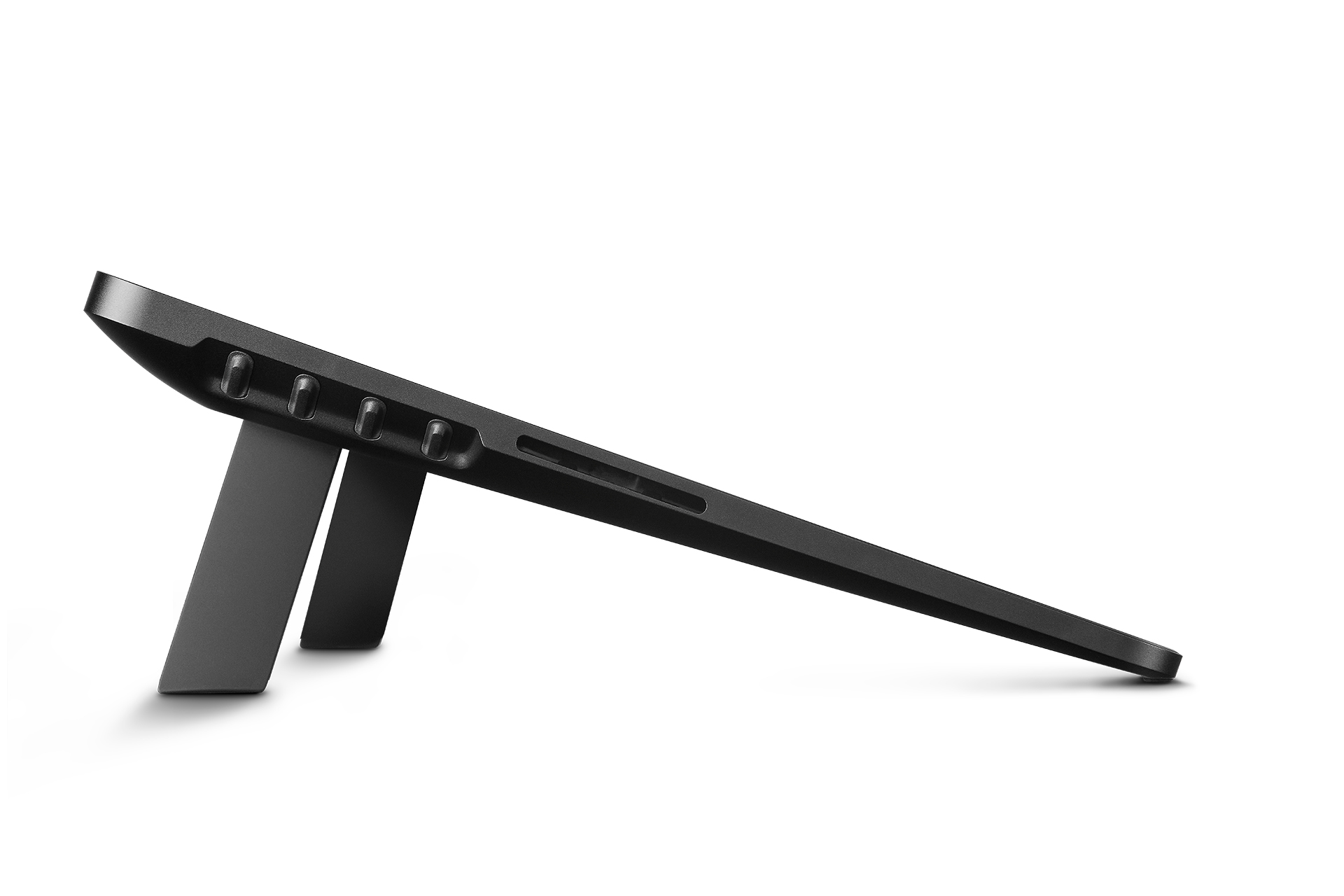

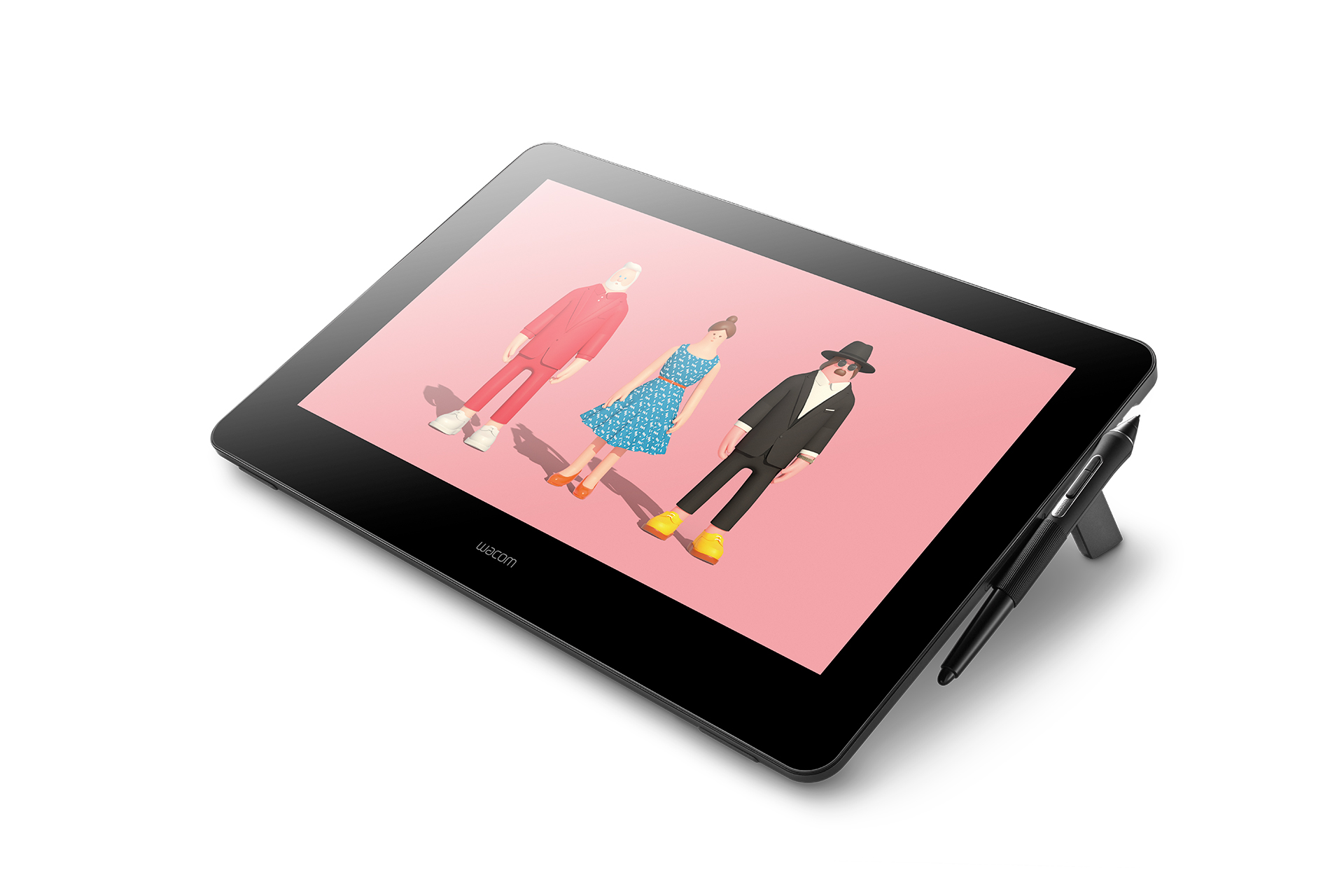

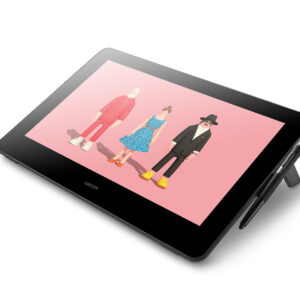

Built-in legs raise your Wacom Cintiq Pro from 5° to 20°

Compatible with Mac and Windows

• Display Size15.6 inch (39.6 cm)
• ResolutionUp to Ultra HD (3840 x 2160)
• Advanced Control8192 levels pen pressure
• Productivity BoostersTime‑saving onscreen settings; ExpressKeys, Touch Ring on optional ExpressKey Remote

• ErgonomicsBuilt-in stand (5° w/o legs or 20°w/ legs). Optional stand available.
• CompatibilityWindows, Mac
• Product TypeCreative Pen Display 16
• Size410 x 266 x 22 mm (16.1 x 10.5 x 0.9 in)
• Weight1.9 kg (4.2 lbs) without optional stand
• Screen Size (Measured Diagonally)39.6 cm / 15.6 in
• TechnologyIPS UHD high brightness panel
• Displayable Colors (maximum)16.7 million
• Aspect Ratio16:9
• Viewing Angle178° (89°/89°) H, (89°/89°) V
• Contrast Ratio1000:1
• Brightness300 cd/m2
• Response Rate30 ms
• Active Area344 x 194 mm (13.6 x 7.6 in)
• Color Gamut98% Adobe RGB (CIE 1931)
• Industry Standard Pre-sets6500° K whitepoint default
• Graphics InputUSB-C port with DisplayPort Alternate Mode (UHD), or HDMI 2.0 or later (UHD) port and USB-A port
• Multi-TouchYes
• PenWacom Pro Pen 2
• Pressure Levels8192, both pen tip and eraser
• Tilt Range60 degrees
• Tilt Recognition±60 levels
• TypePressure-sensitive, cordless, battery-free
• SwitchesTip switch, 2 side switches, eraser
• Nibs13 (9 standard, 4 felt)
• Pen Box/ HolderYes – Pen Holder

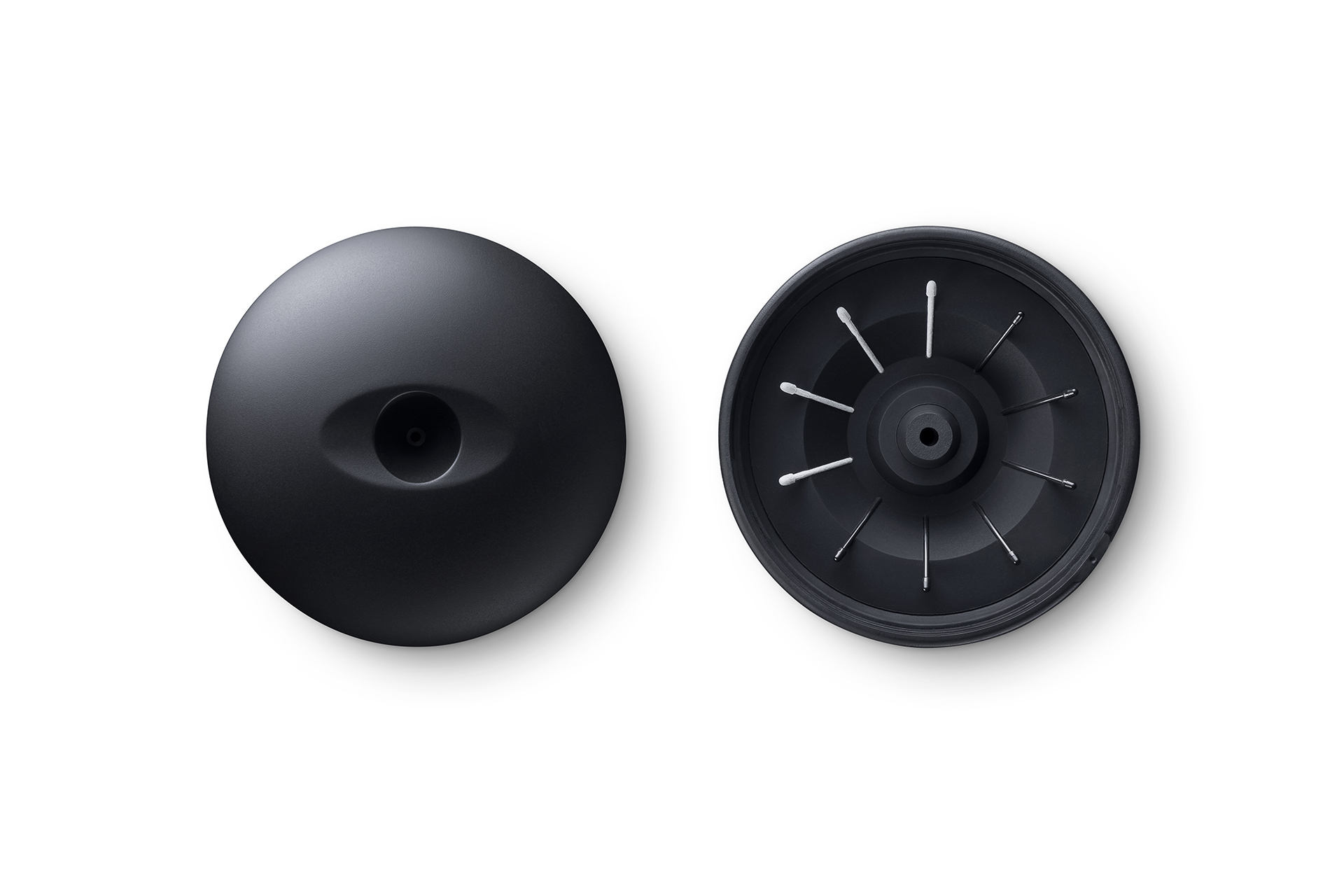

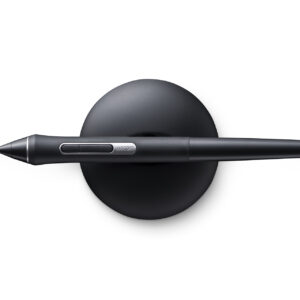

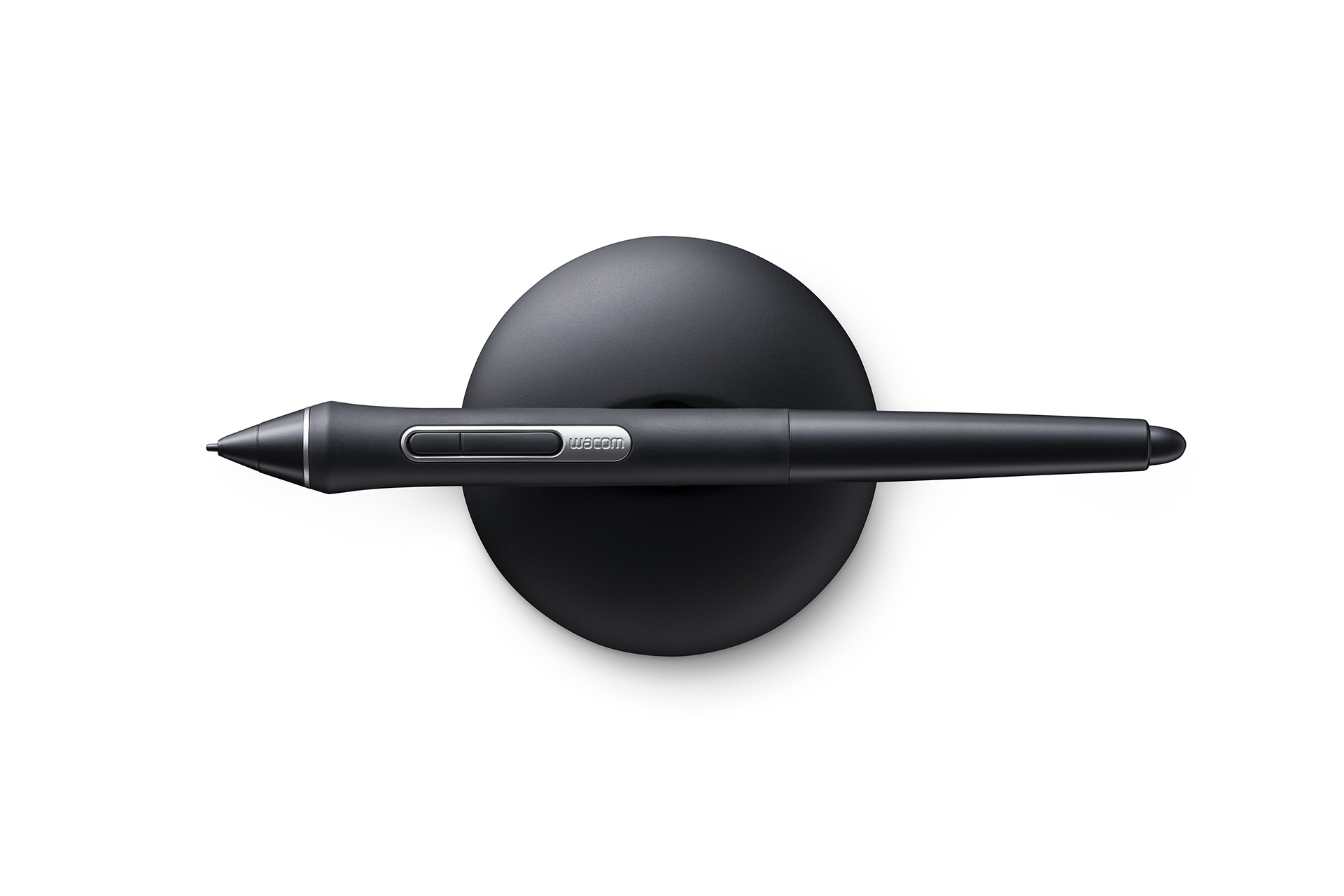

• Pen StandYes
• GripLatex-free silicone rubber
• TechnologyPatented electromagnetic resonance method
• Resolution5080 lpi
• ExpressKeys™17 customizable, application-specific on optional ExpressKey™ Remote
• Touch RingYes – on optional ExpressKey Remote
• Touch StripsNo
• Rocker Ring And Home ButtonYes – on optional ExpressKey Remote
• Radial MenuYes
• Precision ModeYes – on optional ExpressKey Remote
• Display ToggleYes – on optional ExpressKey Remote
• Dedicated Pan, Scroll, Zoom, Brush SizeYes – on optional ExpressKey Remote

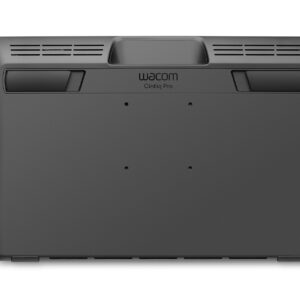

• Stand AdjustabilityIntegrated pop-out legs for 20° angle; optional detachable Wacom Adjustable Stand with 19 to 85 degrees angle; VESA mount (75 x 75 mm) to attach third party arm or stand
• OrientationRight or left-handed use
• Cables IncludedUSB-C to USB-C cable, USB-C to USB-A cable, HDMI 2.0 cable
• PC And Mac ConnectionUSB-C port with DisplayPort Alternate Mode (UHD), or HDMI 2.0 or later (UHD) port and standard USB-A port
• AudioAudio headset jack included
• Power Supply Input100 to 240 VAC, 50/60Hz
• Power Supply Output20 VDC, 2.25 A (max)
• Power ConsumptionMax. Power Consumption: 25 W or less, 1.5 W or less when asleep, 0.3 W or less when off
• SecurityKensington® MiniSaver™ Mobile Lock Slot (lock purchased separately)
• System RequirementsPC: Windows® 7 or later, Mac: OS X® 10.14 or later, USB-C port with DisplayPort Alternate Mode (UHD), or HDMI 2.0 or later (UHD) port and USB-A port, internet access

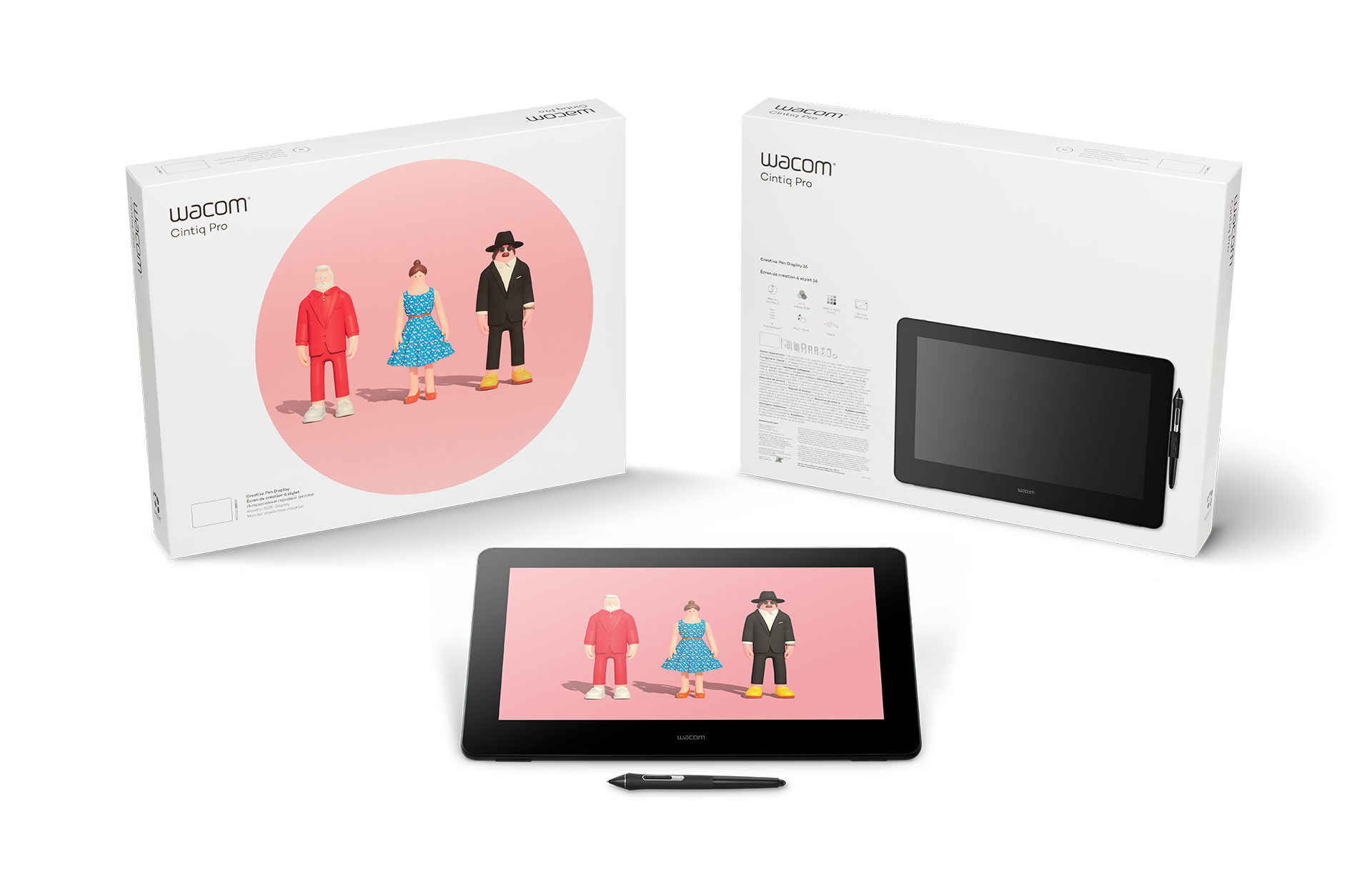

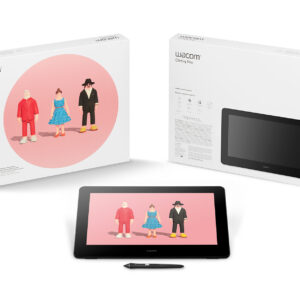

• What’s IncludedWacom Cintiq Pro 16

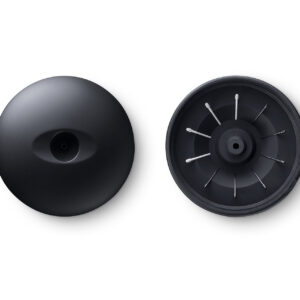

  Wacom Pro Pen 2 with color rings, pen stand with 10 replacement nibs
  (6 standard, 4 felt)

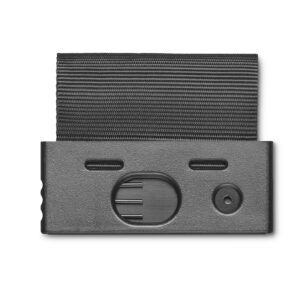

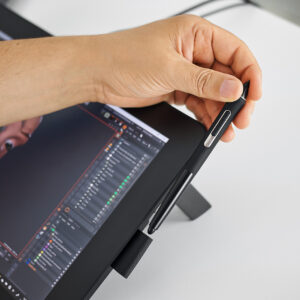

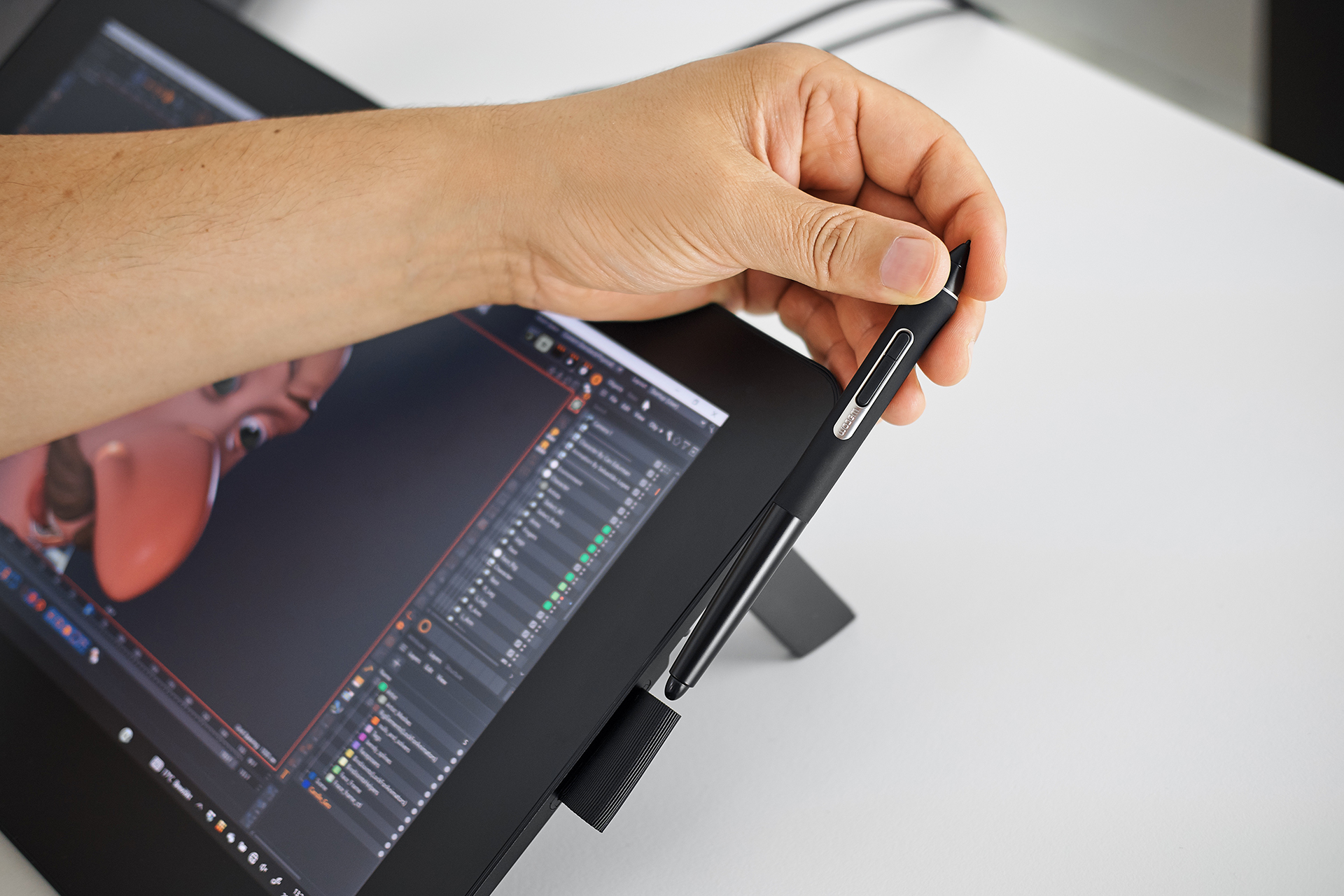

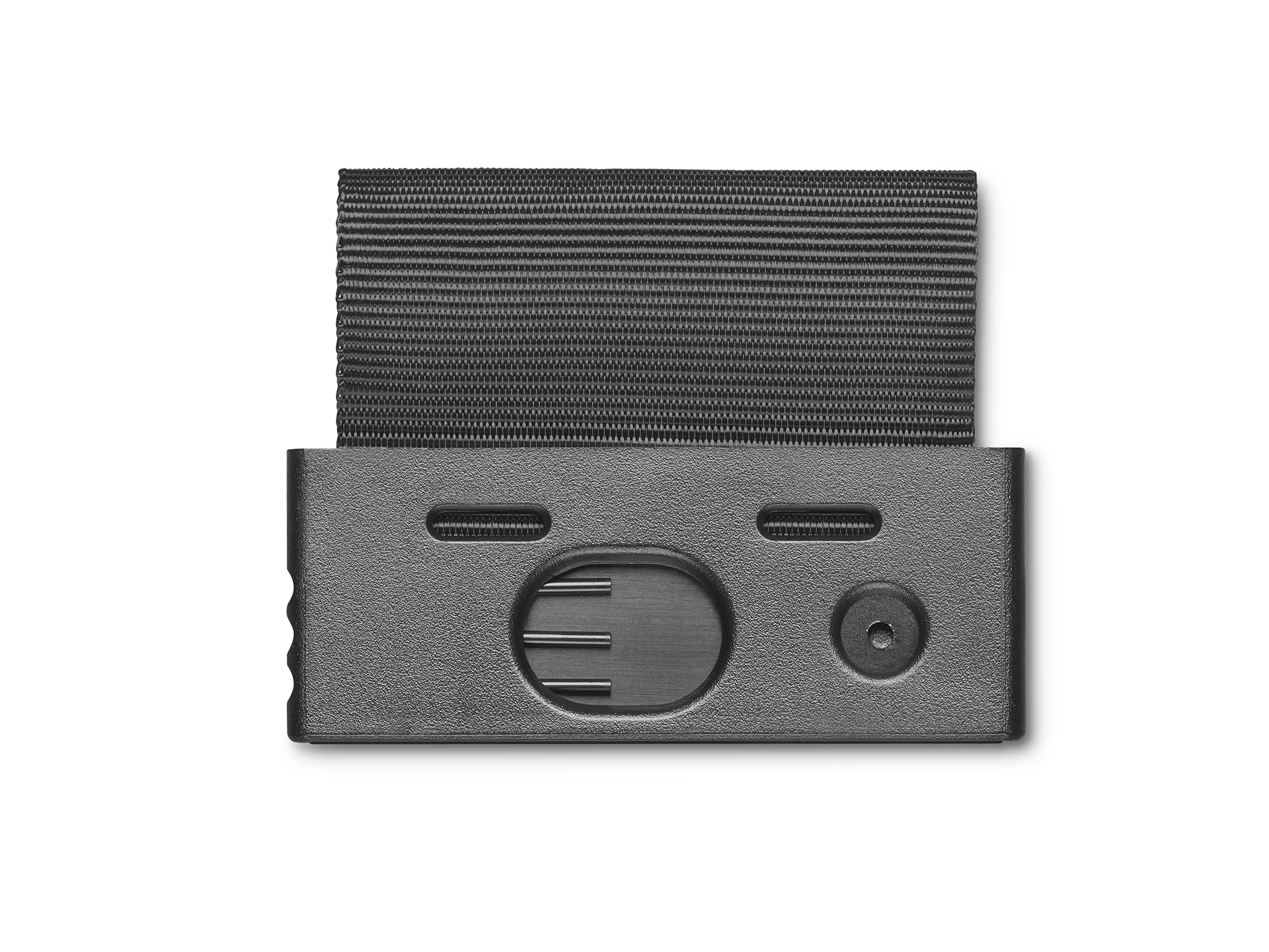

  Detachable pen holder with 3 replacement nibs
  AC adaptor
  Power cable
  USB-C to USB-C cable, USB-C to USB-A cable, HDMI 2.0 cable
  Quick start guide
  Cleaning cloth
• CertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
• Additional AccessoriesExpressKey™ Remote, Wacom Adjustable Stand, Wacom Soft Case, Wireless Bluetooth® Keyboard, Wacom Pro Pen 3D, Wacom Pro Pen Slim, Prior generation pens (Pro, Classic, Art, Airbrush, Grip)
• Model NumberDTH167K0
• Limited Warranty2 years in USA, Canada, and Latin America
  3 years in Europe, Africa, China, and Middle East
  1 year in Japan and Asia Pacific
