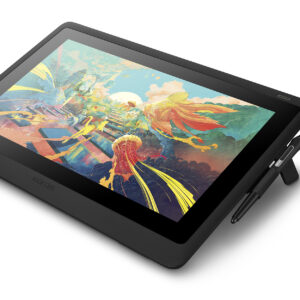

Wacom Cintiq 16 DTK-1660

Make it on Wacom Cintiq

Wacom Cintiq creative pen display is perfectly equipped to help you begin your journey as an illustrator. Vibrant color, HD clarity and ergonomic design together with the super-responsive Pro Pen 2, offer a truly natural experience and help take your creative ideas to the next level.

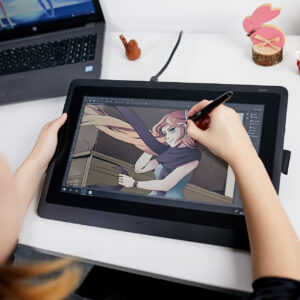

Make it directly on screen

Wacom Cintiq combines pen and display for a seamless experience that feels totally natural. Wacom Pro Pen 2 features 8,192 levels of pressure sensitivity and a low activation force, so it recognizes even the lightest pen strokes. It offers amazing precision and control, reacting to the tilt of your hand and accurately responding to each movement, immediately.

A pen that lets you go further: Wacom Pro Pen 2 looks and feels like a regular pen so you don’t need to learn any new techniques before you start to bring your ideas to life.

Wacom Pro Pen 2 offers precision and control – with 8,192 levels of pressure sensitivity, low activation force and tilt recognition.

Never need to charge the pen – EMR (Electro Magnetic Resonance) technology draws power from your Wacom Cintiq.

Comfortable in your hand – weight-balanced, rubber grip and easy reach of the two side buttons.

Get easy access to your favorite software’s shortcuts – with the pen’s programmable side buttons.

A display that’s built for creativity: Wacom Pro Pen 2 and Cintiq’s 15,6″ slimline display work together to make your creative session comfortable and productive.

Avoid distracting reflections as you work – thanks to an anti-glare film.

See your cursor appear exactly where you would expect with reduced parallax.

Rely on Wacom Cintiq project after project – thanks to durable, scratch resistant materials.

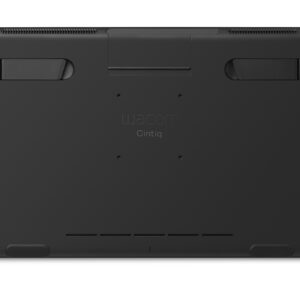

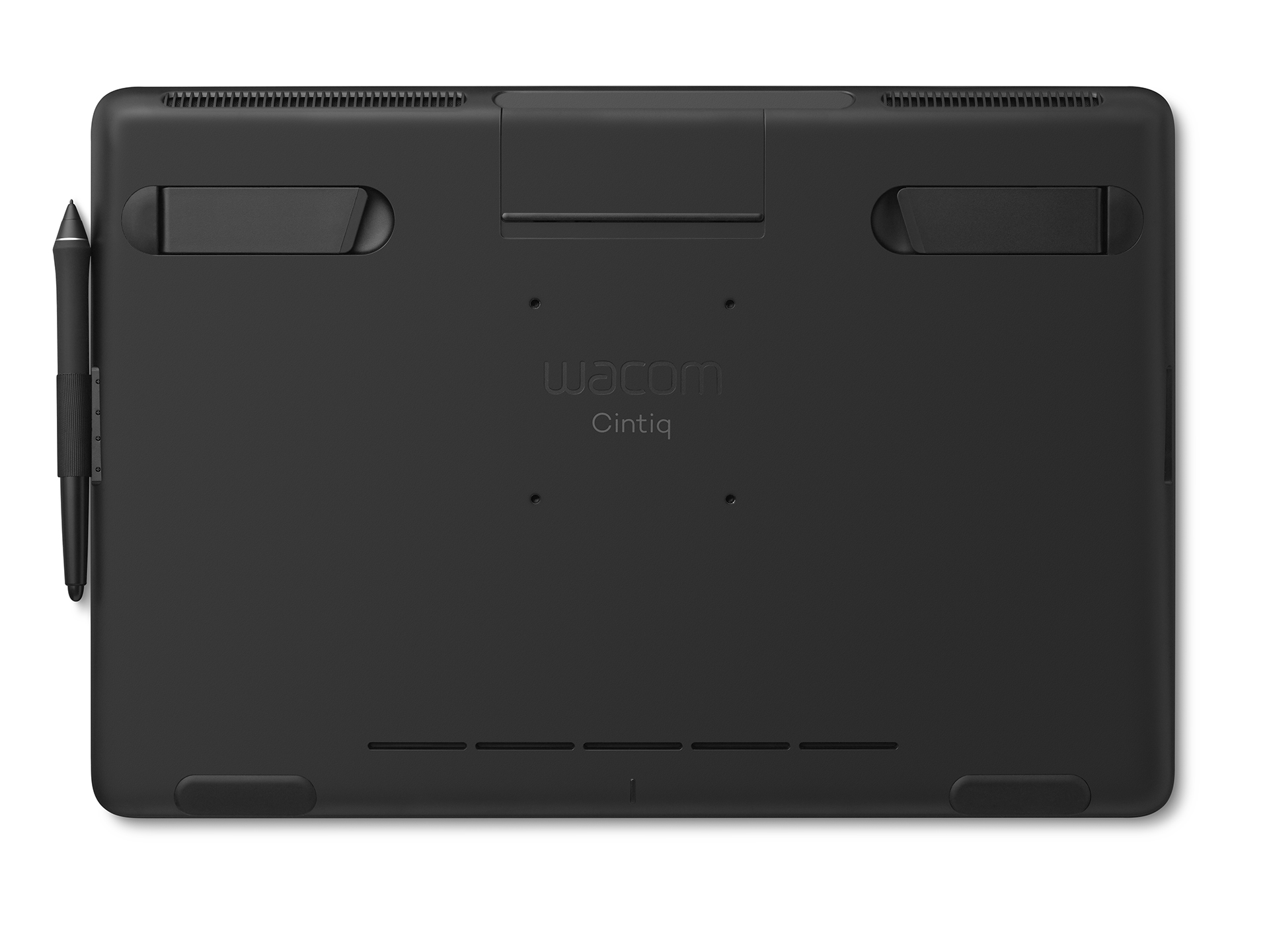

Get into the perfect position – a pair of foldable legs let you adjust how you want to create. An optional stand gives you even more flexible and ergonomic positions.

See every detail of your work – the 1920 x 1080 full HD display gives you all the clarity you need.

Customize how you work even further – Wacom Cintiq is compatible with the full range of accessory pens in the Wacom range.

• Product TypeCreative Pen Display
• Model NumberDTK1660K0A
• Resolution1920 x 1080 (Full HD)
• Display Size422 x 285 x 24.5mm
  16.6 x 11.2 x 1.0 in
• Display Weight1.9 kg without optional stand
• Screen Size (Measured Diagonally)39.6 cm / 15.6 in
• Technologya-Si Active Matrix TFT LCD (IPS)
• Displayable Colors (maximum)16.7 million
• Aspect Ratio16:9
• Viewing Angle176/176 degree (typ) / 140/140 degree (min)
• Contrast Ratio1000:1 (typ) / 600:1 (min)
• Luminance210 cd/m2 (typ) (including glass)
  White luminance (center) 180 cd/m2 (min)
• Response time25 ms
• Active Area345 x 194 mm
  (13.6 x 7.6 in)
• Color Gamut72% NTSC (CIE 1931) typical
  96% sRGB (CIE 1931) typical
• Color Temperature / Custom Color9300K
  6500K
  5000K
  Custom RGB
• Graphics InputNone
• Multi-TouchNo
• PenWacom Pro Pen 2
• Pressure Levels8192, both pen tip and eraser
• Tilt Range60 degrees
• Tilt Recognition±60 levels
• Pen TypePressure-sensitive, cordless, battery-free
• Pen Switches2 side switches

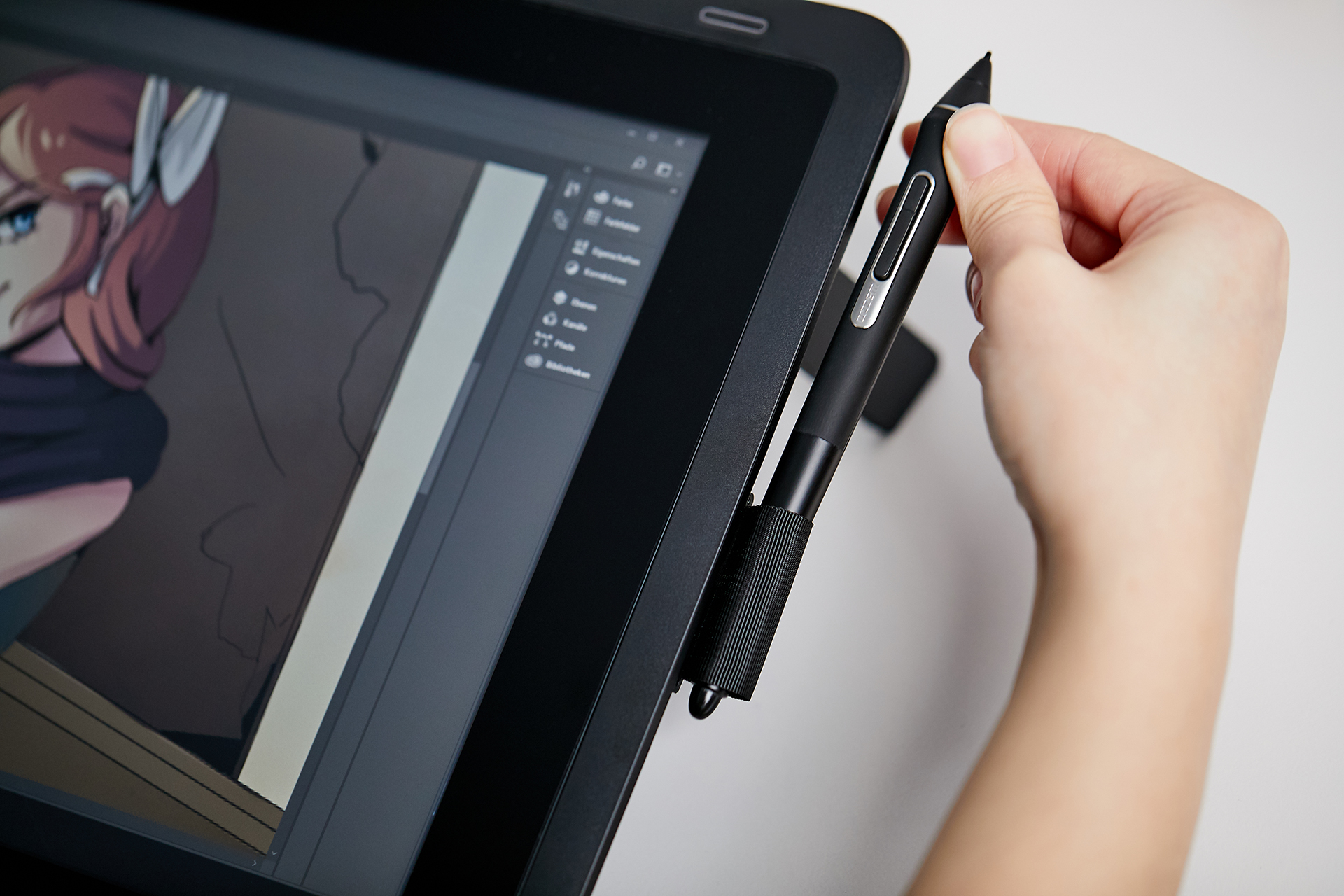

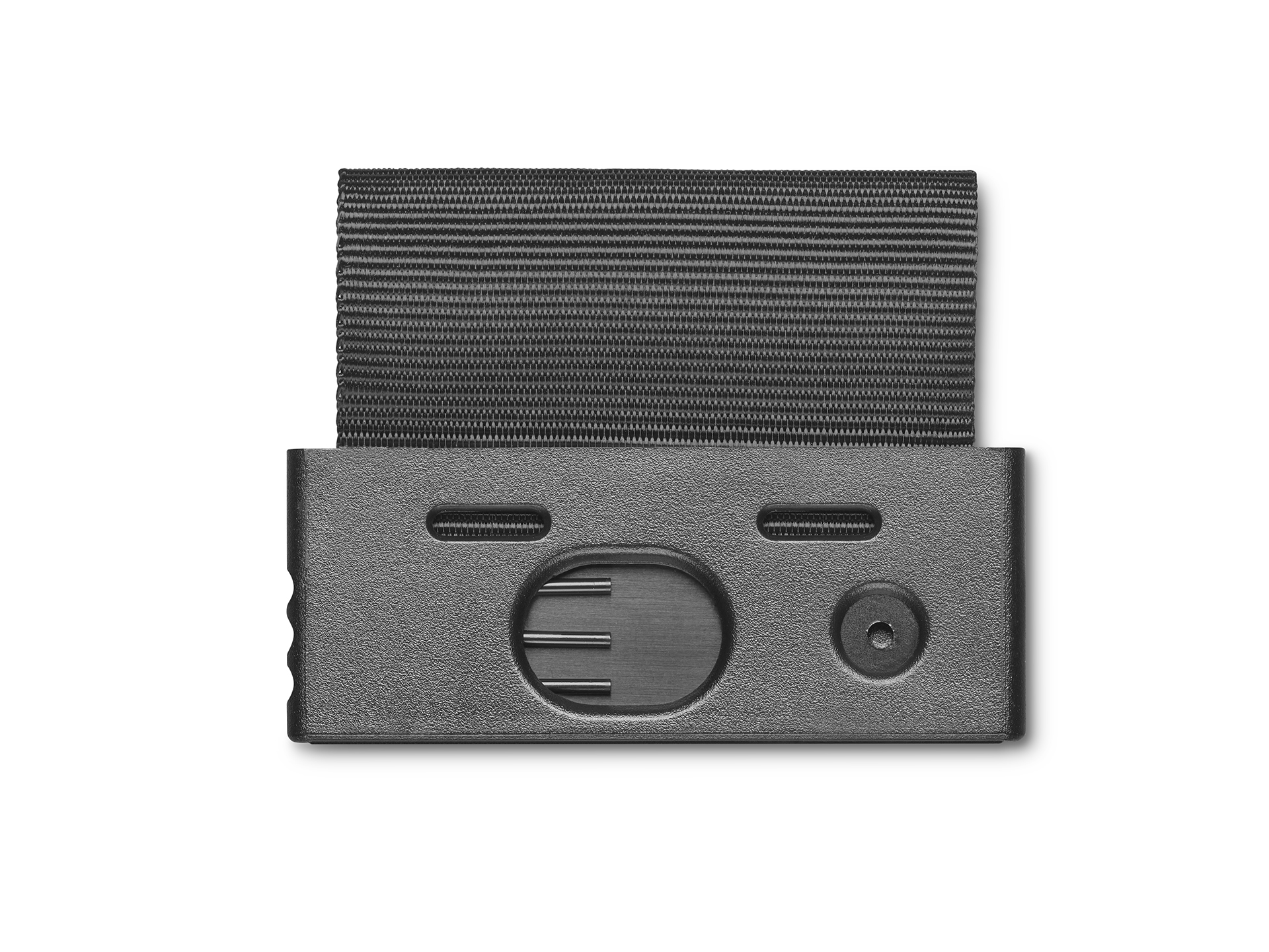

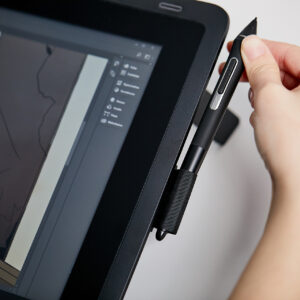

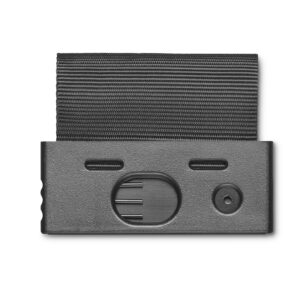

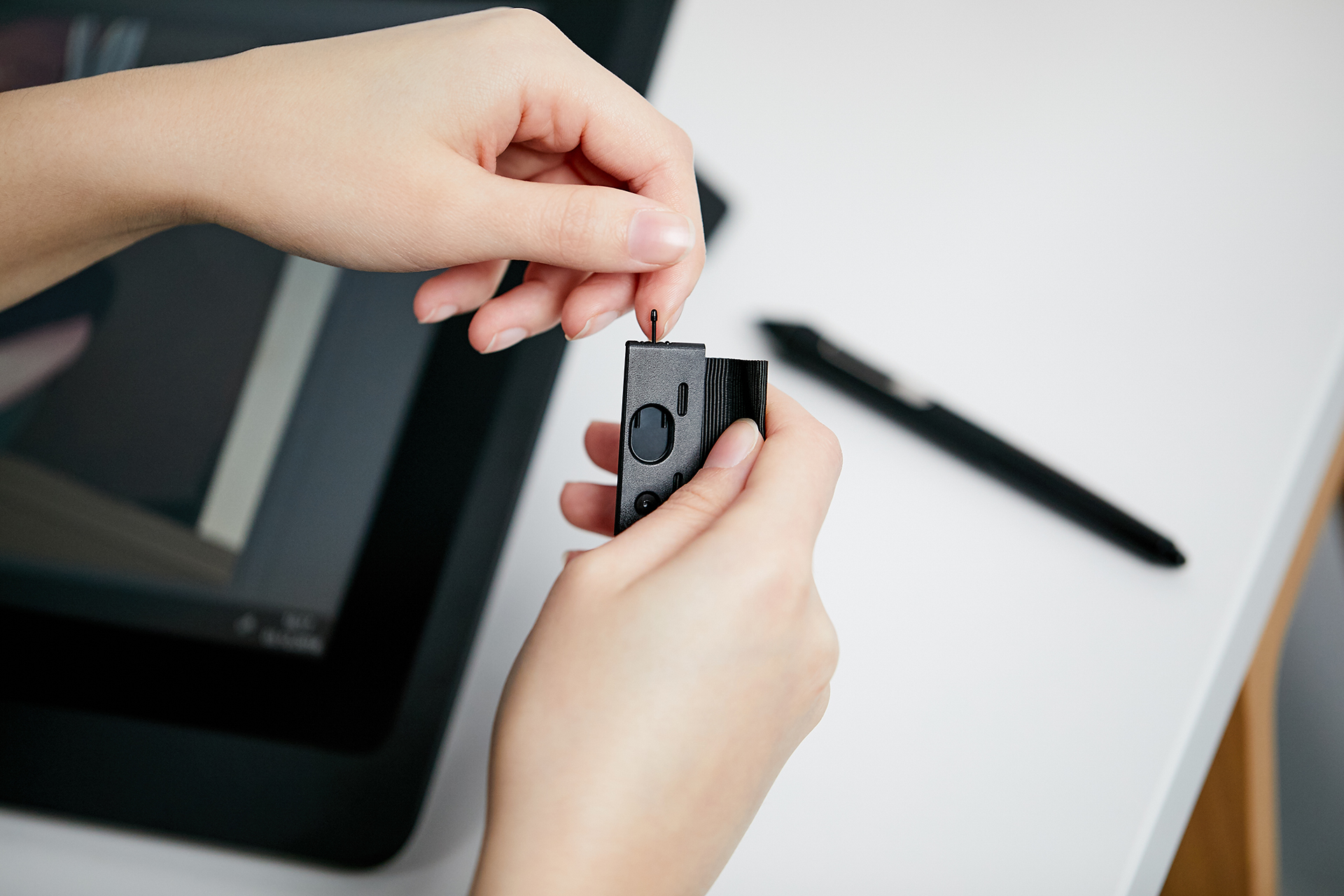

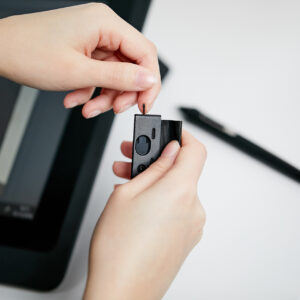

• Pen HolderDetachable Pen holder with 3 replacement nibs (standard) and nib removal tool
• Pen StandNo
• GripLatex-free silicone rubber
• TechnologyPatented electromagnetic resonance technology
• Resolution5080 lpi
• ExpressKeys™On optional ExpressKey Remote
• Touch RingOn optional ExpressKey Remote
• Touch StripsNo
• Radial MenuYes
• Precision ModeYes
• Display ToggleYes
• Dedicated Pan, Scroll, Zoom, Brush SizeYes
• Stand Adjustability19 degrees using built-in, fold-out legs

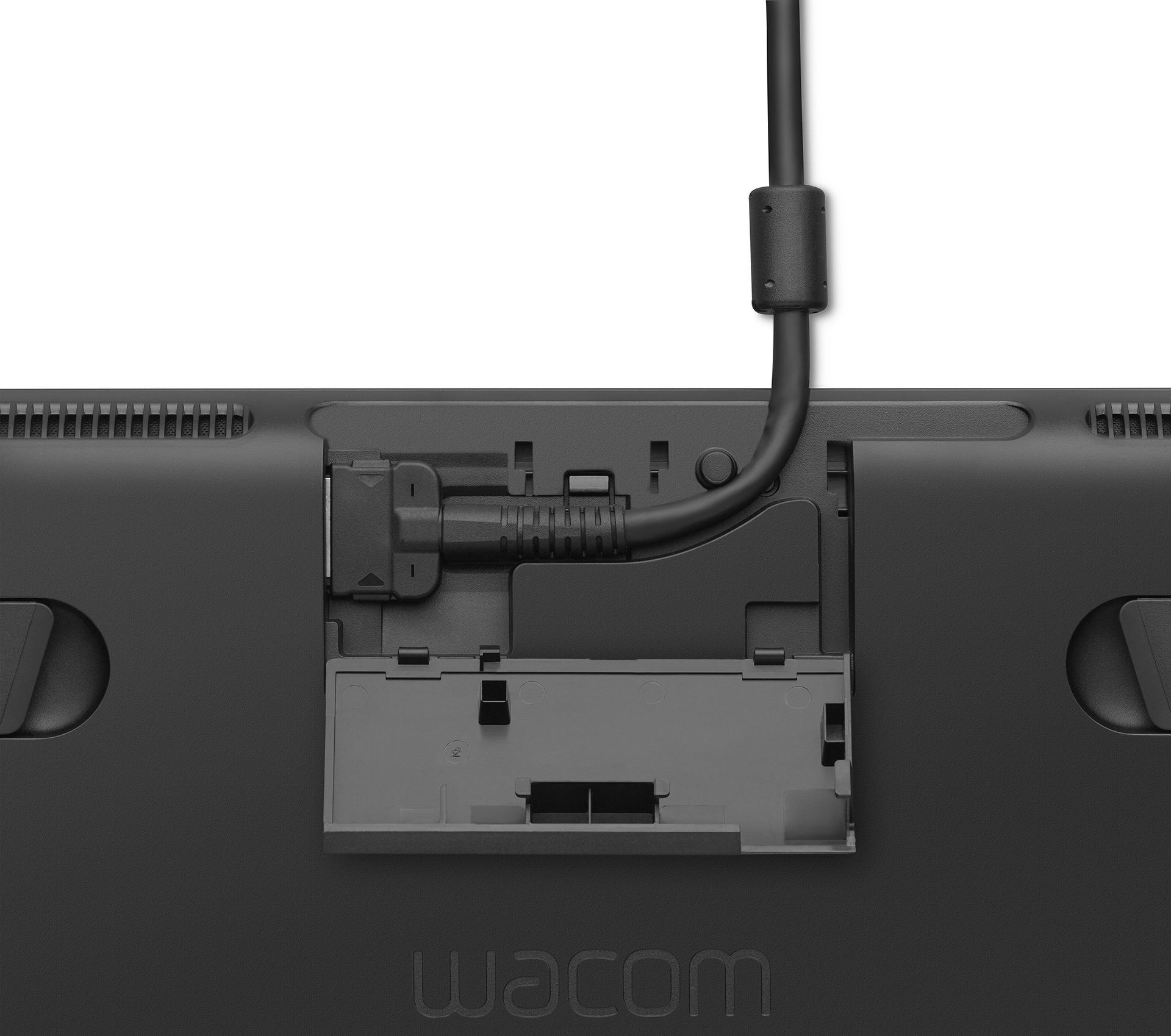

• Cables Included3 in 1 cable (with HDMI 1.4, USB 2.0 and AC adaptor) Power Cable (1.8m)
• PC And Mac ConnectionHDMI port and standard USB-A port
• Ports included3-in-1 cable port only
• AudioNo
• Power Supply Input100 to 240 VAC, 50/60Hz
• Power Supply Output12 VDC, 3A (max)
• Power ConsumptionPower ON mode (MAX): 27 W
  Power sleep mode: 0.5 W or less (non-connection USB cable)
  Power OFF mode: 0.5 W or lower
• BatteryNo
• SecurityKensington® Lock Port (lock purchased separately)
• System RequirementsPC: Windows® 7 or later (latest service pack/build), OS X 10.12 or later (latest update), Internet access for driver download.

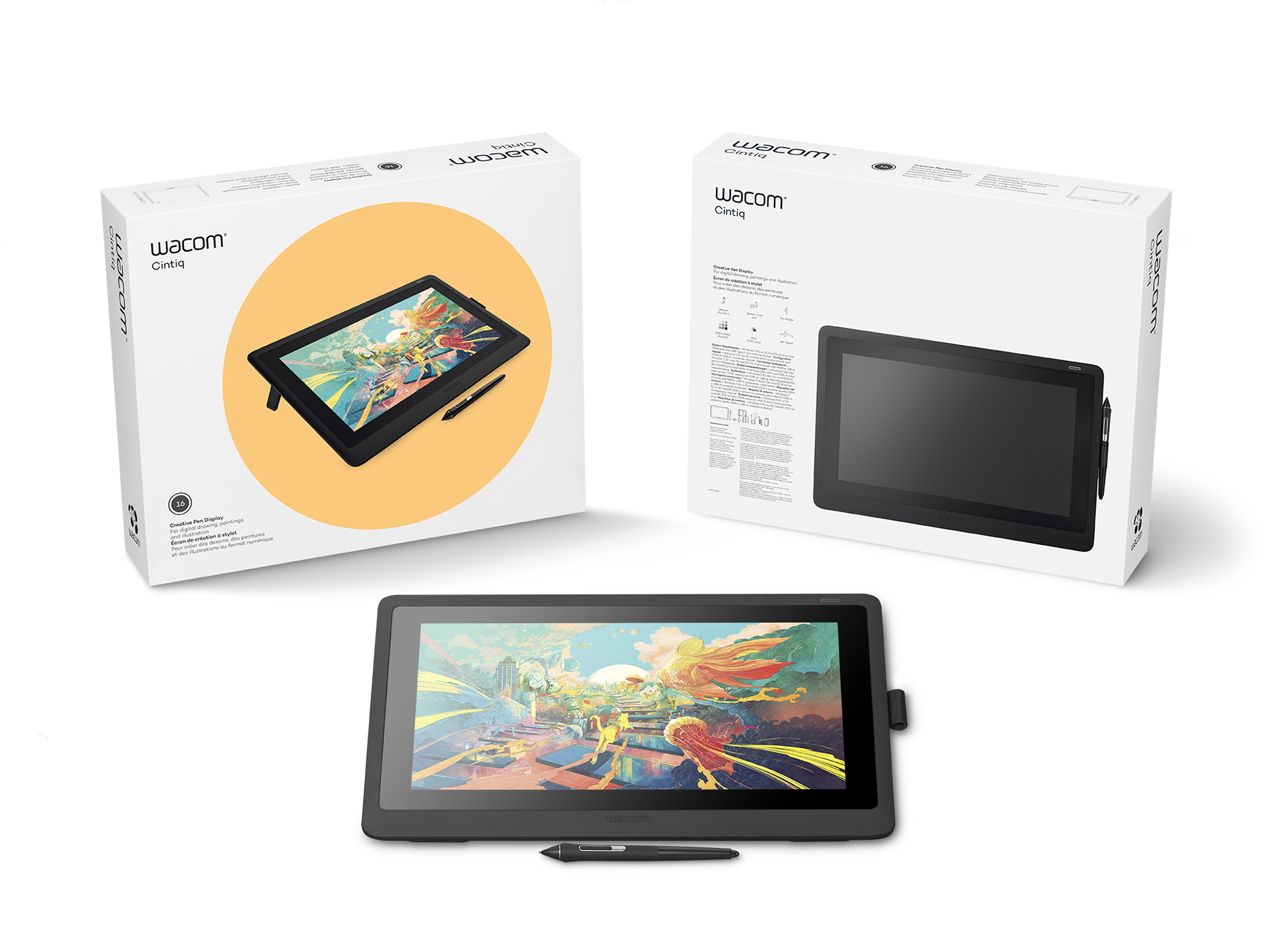

• What’s IncludedWacom Cintiq 16 pen display
  Wacom Pro Pen 2
  Detachable pen holder with 3 replacement nibs (standard) and nib removal tool
  3-in-1 cable (1.8m)
  AC adaptor (12V, 3A, 36W)
  Power cable (1.8m)
  Quick Start Guide
  Warranty card (Japan, Asia Pacific, China only)
  Regulation sheet
• CertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
• Additional AccessoriesWacom Adjustable Stand
  Wacom Pro Pen 2
  Wacom Pro Pen 3D
  ExpressKeyTm Remote
  Wacom Keyboard
  Wacom Softcase Large
  Replacement Wacom nibs (standard) for Wacom Pro Pen 2
  Additional previous generation pens (Classic, Airbrush, Art, Pro Pen)
• Limited Warranty1 year in USA, Canada, and Latin America
